SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

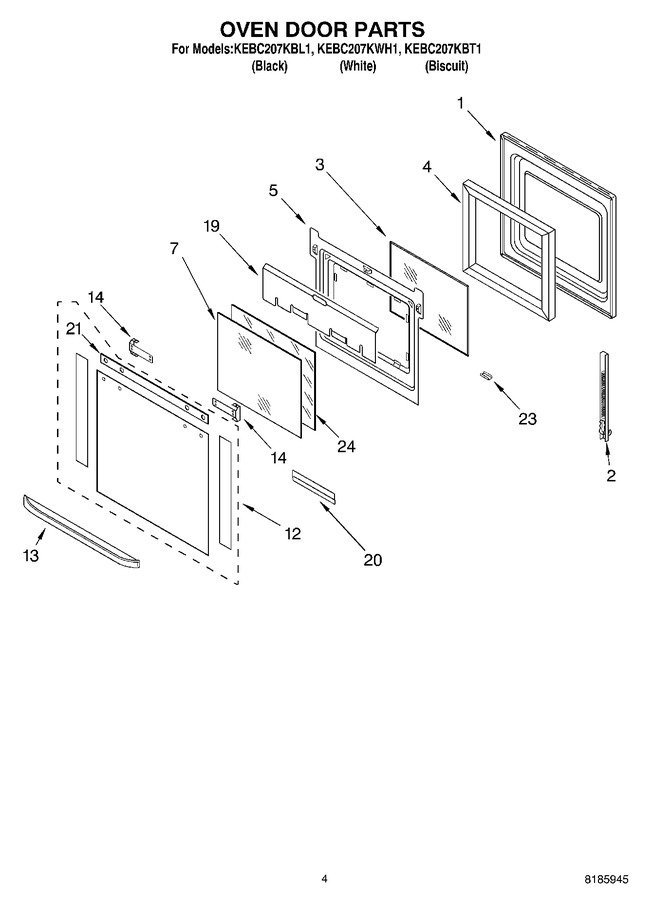

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 317.54
2	WP9760575		Hinge, Door (right Side)   (Replaces: 8300575)			Immediately	$ 58.11
2	WP9760576		Hinge, Door (left Side)   (Replaces: 8300576)			Immediately	$ 50.81
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 6.47
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
5	8300778		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	8300794		Glass, Inner				$ 20.32
12	4455391		Door Glass, Assy (black)		Appelez-nous	-
12	4455395		Door Glass, Assy (biscuit)		Appelez-nous	-
12	4455390		Door Glass, Assy (white)		Appelez-nous	-
13	4452503		Door Handle (white)		Appelez-nous	-
13	4452502		Door Handle (black)		Appelez-nous	-
13	4452871		Door Handle (biscuit)		Appelez-nous	-
14	4452960		Bracket, Handle (left Side)		Appelez-nous	-
14	4452959		Bracket, Handle (right Side)		Appelez-nous	-
14	W10276642		Bracket, Handle (screw)   (Replaces: 4451040)				$ 5.49
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451668		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4452326		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
24	44459263		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
