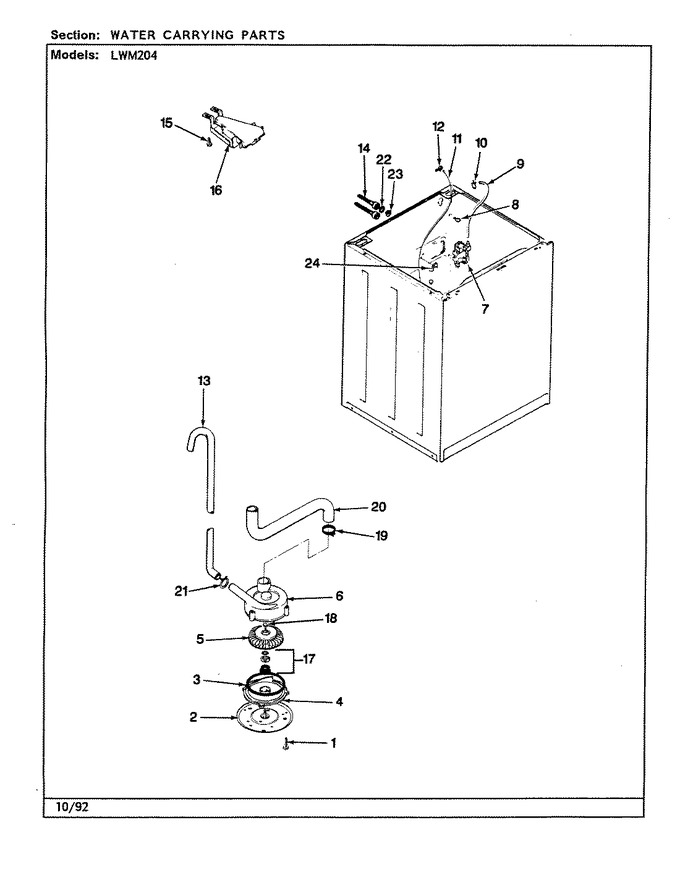

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196164		Screw   (Replaces: 25-7405)	G		Immediately	$ 7.82
2	33-6035		Plate & Pulley Assy.	G	Appelez-nous	-
3	33-6032		Gasket	G	Appelez-nous	-
4	35-2058		Base, Pump	G	Appelez-nous	-
5	WP35-6465		Impeller   (Replaces: 35-2057)	G		Immediately	$ 119.24
6	WP35-6465		Pump Assy (complete)   (Replaces: 35-2099)	G		Immediately	$ 119.24
6	35-2056		Housing, Pump	G	Appelez-nous	-
6	35-2374N		Valve, Water Mixing   (Replaces: 35-2374)	G			$ 276.92
7	WP25-7220		Clip, Cabinet Top   (Replaces: 25-7220)	G			$ 10.77
7	35-2374N		Valve, Water Mixing   (Replaces: 35-2374)	G			$ 276.92
8	WP596669		Clamp   (Replaces: 25-7867)	G		Immediately	$ 7.56
9	12002749		Hose, Flume/diverter (rubber)   (Replaces: 35-2378)	G			$ 25.97
10	WP596669		Clamp   (Replaces: 25-7867)	G		Immediately	$ 7.56
11	35-2261		Pad, Pressure Switch Hose	G	Appelez-nous	-
11	35-2322		Hose, Pressure Switch	G	Appelez-nous	-
12	33-6099		Clamp	G	Appelez-nous	-
13	35-2896		Drain Hose	G	Appelez-nous	-
14	WP89503		Hose, 5` Inlet   (Replaces: 33-7046)	G		Immediately	$ 21.68
14	W11629055		Hose, Inlet   (Replaces: 35-0873)	G			$ 24.93
15	WP90767		Screw   (Replaces: 25-3092)	G		Immediately	$ 7.04
16	35-2051		Flume, Water Inlet	G	Appelez-nous	-
17	35-0707		Seal, Seat & ``o`` Ring	G	Appelez-nous	-
18	WPW10001180		Screw   (Replaces: 25-7894)	G			$ 7.23
19	WP285655		Clamp, Hose   (Replaces: 25-6068)	K		Immediately	$ 7.55
19	25-6069		Corbin Clamp	G	Appelez-nous	-
20	WP21001915		Hose, Tub To Pump   (Replaces: 35-3584)	K		Immediately	$ 31.01
20	35-2982		Hose Tub To Pump	G	Appelez-nous	-
21	WP285655		Clamp, Discharge Hose   (Replaces: 25-7080)	G		Immediately	$ 7.55
22	25-7048		Washer	G	Appelez-nous	-
23	33-7313		Strainer, Hose	G	Appelez-nous	-
24	WP596669		Clamp, Pressure Switch Hose   (Replaces: 25-7796)	G		Immediately	$ 7.56
