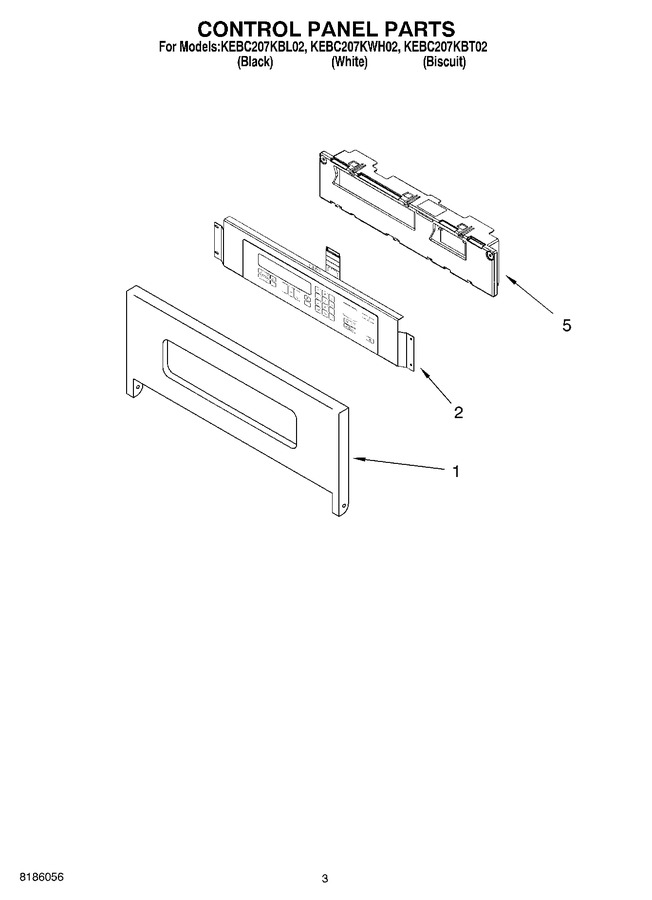

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4452604		Control Panel (black)		Appelez-nous	-
1	4452605		Control Panel (white)		Appelez-nous	-
1	4452974		Control Panel (biscuit)		Appelez-nous	-
1	WP3400832		Control Panel (screw)   (Replaces: 3400832)			Immediately	$ 6.98
2	8301975		Switch, Membrane (black)				$ 125.31
2	8301976		Switch, Membrane (white)		Appelez-nous	-
2	8301977		Switch, Membrane (biscuit)		Appelez-nous	-
2	8301848		Latch, Sister Board				$ 184.23
5	8301890		Assy, Control		Appelez-nous	-
5	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
