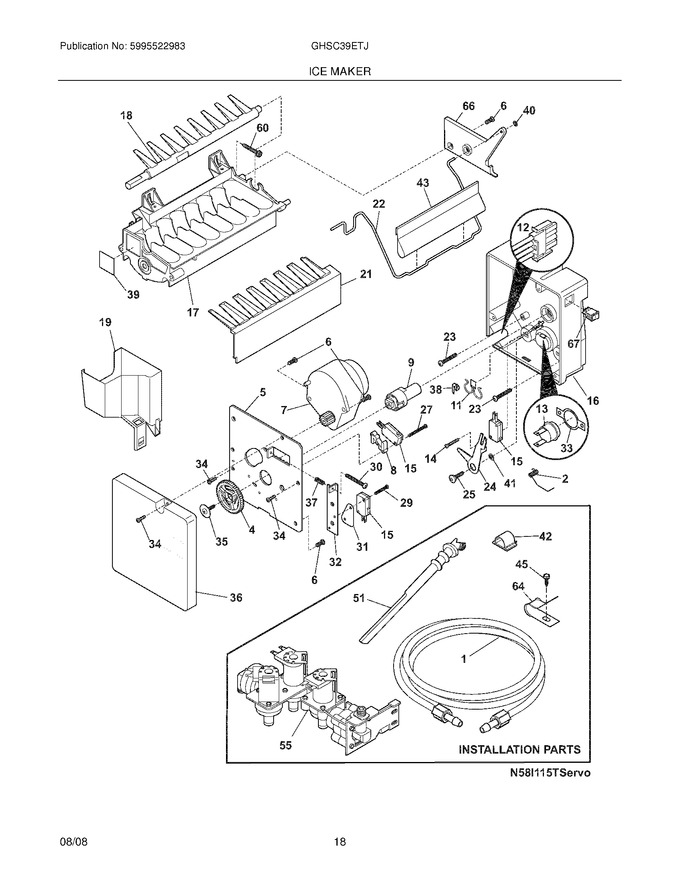

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
2	5304459922		Spring,shut-off Arm		Appelez-nous	-
4	5304458380		Gear				$ 32.77
5	5304458383		Plate-mounting		Appelez-nous	-
6	5304458386		Screw		Appelez-nous	-
8	5304458388		Spacer-hold Switch		Appelez-nous	-
9	5304456662		Cam		Appelez-nous	-
12	5304458379		Harness-wiring				$ 112.69
13	5304456665		Thermostat,ice Maker				$ 134.23
14	5304458384		Screw		Appelez-nous	-
16	5304458395		Housing,control				$ 96.16
17	241798231		Mold-ice Maker,w/therm Cut Off   (Replaces: 5304456669)			Immediately	$ 200.97
18	5304458377		Ejector-ice				$ 38.75
19	5304458378		Cup-water Inlet				$ 54.97
21	5304458390		Ice Stripper		Appelez-nous	-
22	5304458375		Shut-off Arm				$ 61.48
23	5304458394		Screw		Appelez-nous	-
24	5304458391		Lever Arm				$ 40.16
25	5304456676		Screw,m 4x12.8 No.2 ,lever Arm/sprt		Appelez-nous	-
27	5304458385		Screw		Appelez-nous	-
29	5304458393		Screw		Appelez-nous	-
30	5304458387		Screw		Appelez-nous	-
31	5304458381		Insulator		Appelez-nous	-
32	5304456681		Plate-valve Switch		Appelez-nous	-
33	5304458403		Retainer-thermostat		Appelez-nous	-
34	5304456678		Screw,m 3x12 No.3 ,(2)		Appelez-nous	-
35	5304456684		Screw				$ 31.90
36	5304458376		Cover-ice Maker				$ 58.31
37	5304456682		Spring,timing Adjust		Appelez-nous	-
38	5304458398		Clip		Appelez-nous	-
39	5304458399		Conductor-heat		Appelez-nous	-
40	5304458401		Clip-retainer		Appelez-nous	-
41	5304458389		Screw		Appelez-nous	-
42	218515403		Clip-grille				$ 29.06
43	241720601		Extension				$ 20.56
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
51	241796406		Tube-water Fill,extension   (Replaces: 241796402)				$ 19.85
60	5304455651		Screw,hex Washer Head ,8-15a X 0.500				$ 14.41
64	5304455846		Clamp,.31 Id ,steel ,water Tube				$ 10.63
66	5304458374		Bracket-ice Maker		Appelez-nous	-
67	5304458392		Switch-on/off		Appelez-nous	-
F11	5304458400		Thermal Cutoff,ice Maker		Appelez-nous	-
F15	5304456667		Switch-micro,(3)				$ 92.53
F55	242252702		Valve-water,triple Solenoid   (Replaces: 241734301)			Immediately	$ 132.71
F7	5304458382		Motor-ice Maker Svo				$ 138.97
NI	218976418		Tube-water Inlet,inlet Valve ,to Filter				$ 64.49
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	240542901		Cap-water Valve				$ 18.95
NI	218976421		Tube-water Inlet,valve To Door				$ 20.56
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 20.56
NI	241522901		Harness-wiring,icmkr/container				$ 109.86
NI	241583301		Deflector-air,ice Maker				$ 46.78
NI	241806601		Connector-water,straight			Immediately	$ 70.56
NI	5304456660		Screw,m 4x6 No.2		Appelez-nous	-
NI	5304456689		Washer,nylon				$ 77.26
NI	5303918344		Ice Maker,radius Cube ,115 V ,no Instl Parts   (Replaces: 241709801)			Immediately	$ 178.39
