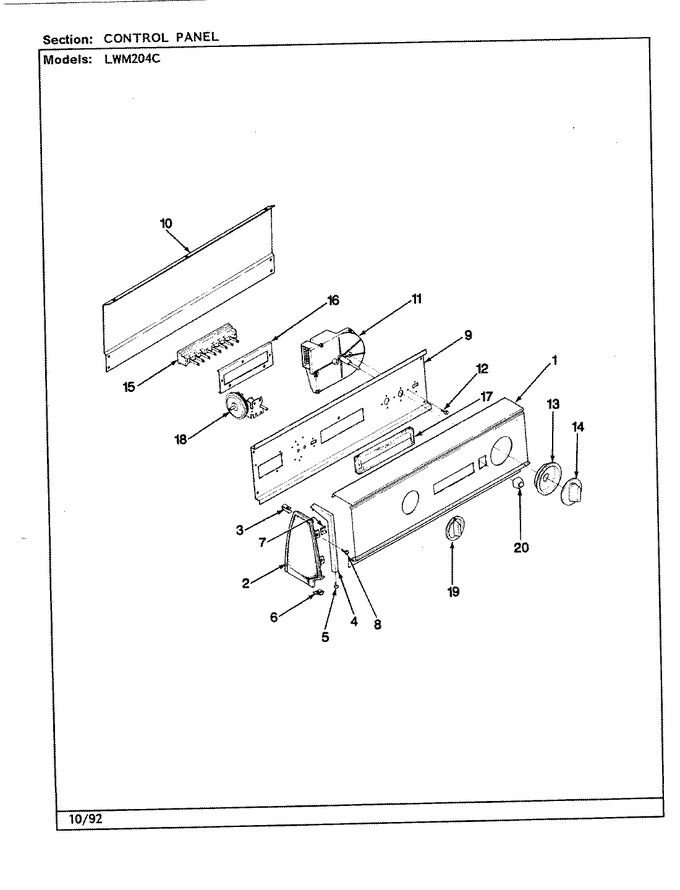

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	35-2177		Control Panel		Appelez-nous	-
1	25-7649		Screw		Appelez-nous	-
2	35-2488		Cap, End (lt)		Appelez-nous	-
2	35-2487		Cap, End (rt)		Appelez-nous	-
3	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
4	53-0278		Trim, End Cap (lt)		Appelez-nous	-
4	53-0277		Trim, End Cap (rt)		Appelez-nous	-
5	25-7760		Screw		Appelez-nous	-
6	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
6	25-7697		Screw		Appelez-nous	-
6	34-9487		Plate, Reinforcement		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1677		Control Shield		Appelez-nous	-
10	25-7583		Plastic Nut		Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
11	35-2748		Timer		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
13	35-2255		Skirt & Ring Assy		Appelez-nous	-
14	35-2485		Knob, Timer		Appelez-nous	-
15	35-2197		Switch		Appelez-nous	-
16	33-6620		Bracket		Appelez-nous	-
16	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
17	33-8540		Switch Pad		Appelez-nous	-
18	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
18	WP21001554		Switch, Pressure   (Replaces: 35-3283)				$ 143.59
19	35-2186		Knob, Selector		Appelez-nous	-
20	35-2588		Pushbutton - Black		Appelez-nous	-
