02 - Cooktop Parts
03 - Door Parts
04 - Backguard
05 - Drawer Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

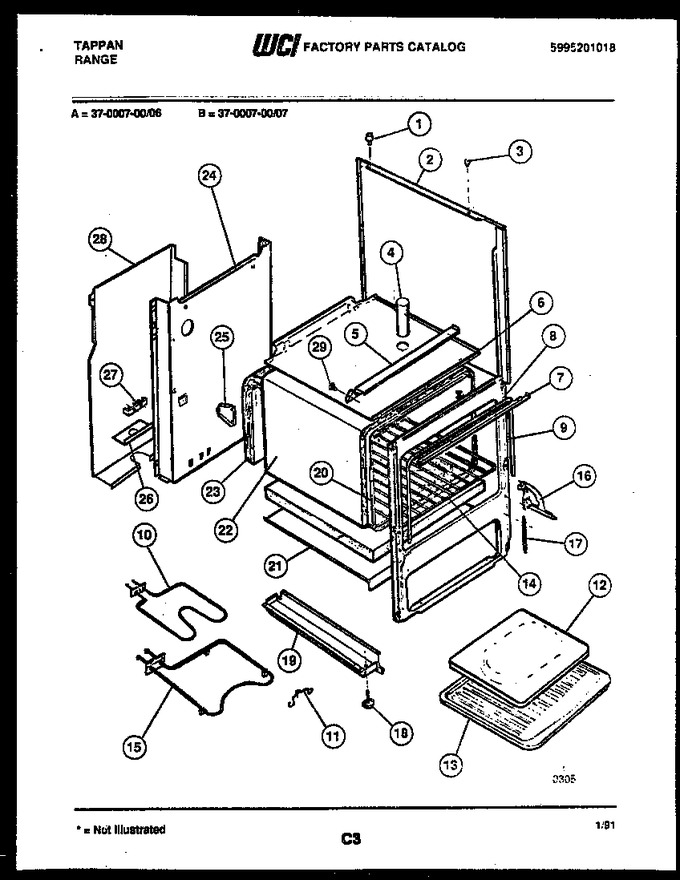

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet (2) |
|
- | |||||
| 2 | 5308014019 | Panel-bodyside Almond L & R |
|
- | |||||
| 2 | 5303051061 | Panel-bodyside White L & R |
|
- | |||||
| 3 | 3051063 | Grommet |
|
- | |||||
| 4 | 3051064 | Tube-vent |
|
- | |||||
| 5 | 3051065 | Shield-switch |
|
- | |||||
| 6 | 3017015 | Burner Box |
|
- | |||||
| 7 | 3051067 | Support-control Pnl |
|
- | |||||
| 8 | 3203621 | Front Frame |
|
- | |||||
| 9 | 5303051069 | Seal-door |
|
- | |||||
| 10 | 3051071 | Element-broil |
|
- | |||||
| 11 | 5303009445 | Support-broil Element |
|
- | |||||
| 12 | 5303017712 | Insert-broiler Pan |
|
- | |||||
| 13 | 5303016973 | Broiler-pan |
|
- | |||||
| 14 | 3016158 | Rack-oven (2) |
|
- | |||||
| 15 | 5303051076 | Element-bake |
|
- | |||||
| 16 | 5303204672 | Cam Door-lh |
|
- | |||||
| 17 | 5303051079 | Spring-cam L & R (2) |
|
- | |||||
| 18 | 318175510 | Leveling Leg (4) (Replaces: 5303210257) |
|
Immediately | $ 24.26 | ||||
| 19 | 5303210256 | Rail-base, Lh |
|
- | |||||
| 20 | 3016533 | Oven-liner Side Rh |
|
- | |||||
| 21 | 3051092 | Pan-insulation |
|
- | |||||
| 22 | 3051093 | Insulation-wool Wrapper |
|
- | |||||
| 23 | 3051094 | Insulation-wool Back |
|
- | |||||
| 24 | 3203619 | Back Main |
|
- | |||||
| 25 | 3051096 | Support-oven Rear (2) |
|
- | |||||
| 26 | 3205588 | Support-conduit |
|
- | |||||
| 27 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 28 | 3203615 | Cover-wire |
|
- | |||||
| 29 | 08008009 | Bushing,snap |
|
- | |||||
| *43665 | 5301145190 | Strap, Ground |
|
- | |||||
| *43665 | 3934059 | Anti-tip Kit |
|
- | |||||
| *43665 | 5300009126 | Clip |
|
- | |||||
| *43665 | 5303210981 | Weight-cement |
|
- | |||||
| *43666 | 5303210892 | Retainer Counter Weight |
|
- | |||||
| 16A | 5303204670 | Cam Door-rh |
|
- | |||||
| 19A | 5303210255 | Rail,base ,rh |
|
- | |||||
| 20A | 3017599 | Oven-liner Side Lh |
|
- | |||||
| 20B | 3017708 | Oven-liner Top |
|
- | |||||
| 20C | 3017710 | Oven-liner Back |
|
- | |||||
| 20D | 3017720 | Oven-liner Bottom |
|
- |
