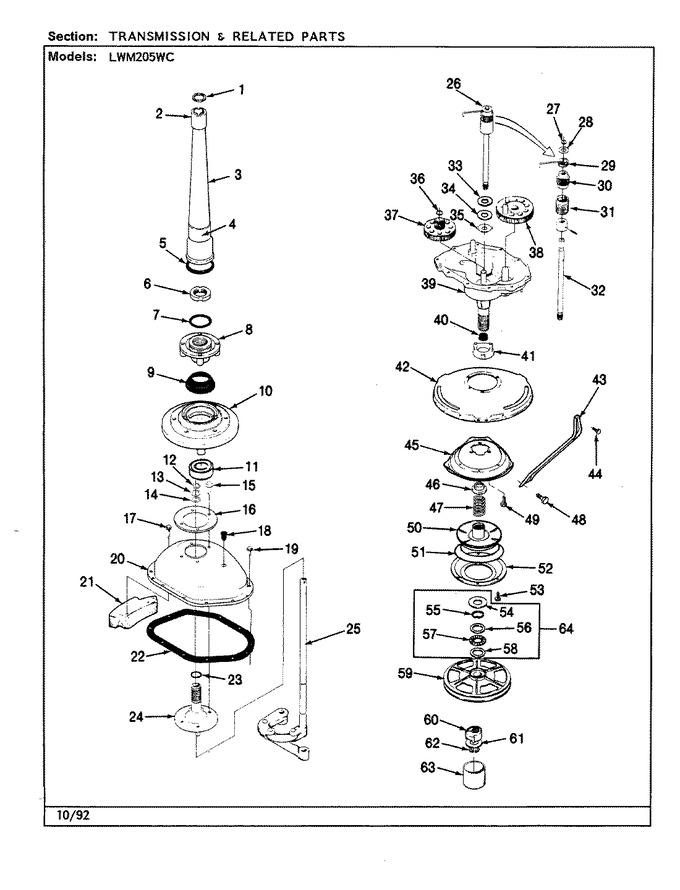

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7941 | ``o`` Ring |
|
$ 5.83 | |||||
| 2 | 35-2835 | Bearing, Centerpost |
|
- | |||||
| 3 | 35-2792 | Centerpost |
|
- | |||||
| 4 | 35-2983 | Centerpost Assy. |
|
- | |||||
| 4 | 33-6790 | Bearing, Agitator |
|
- | |||||
| 5 | 35-2906 | Seal, Centerpost Bottom |
|
- | |||||
| 6 | 35-2791 | Nut, Spin Tube |
|
- | |||||
| 7 | 25-7938 | ``o`` Ring, Basket Drive Hub |
|
- | |||||
| 8 | 35-2715 | Basket Drive Hub Assy |
|
- | |||||
| 8 | 35-3647 | Hub, Basket Drive | D |
|
- | ||||
| 9 | 35-2974 | Tub Seal/hub Assy (ht Trans) |
|
$ 36.14 | |||||
| 10 | 35-2716 | Housing, Bearing & Seal |
|
- | |||||
| 11 | 35-2972 | Bearing & Seal Housing Assy. |
|
- | |||||
| 11 | 35-2205 | Bearing, Spin |
|
$ 40.16 | |||||
| 12 | 25-7949 | Ring, Retaining (ag. Shaft) |
|
- | |||||
| 13 | 25-7057 | Washer, Flat |
|
- | |||||
| 14 | 25-7051 | Washer, Flat |
|
- | |||||
| 15 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy |
|
- | |||||
| 16 | 35-2981 | Cover, Reinforcement |
|
- | |||||
| 17 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy |
|
- | |||||
| 18 | 35-2621 | Plug, Oil Fill |
|
- | |||||
| 19 | 25-7926 | Screw, Cover To Trans. Housing |
|
- | |||||
| 20 | 35-2971 | Transmission Cover Assy. |
|
- | |||||
| 20 | 35-2620 | Cover, Transmission |
|
- | |||||
| 21 | 35-2903 | Counterweight |
|
- | |||||
| 22 | 35-1030 | Gasket, Transmission Housing |
|
- | |||||
| 23 | 25-7722 | ``o`` Ring, Drive Tube |
|
- | |||||
| 24 | 35-3702 | Drive Tube Assy. | D |
|
- | ||||
| 24 | 35-2708 | Drive Tube Assy |
|
- | |||||
| 25 | 35-3036 | Linkage Assy |
|
- | |||||
| 25 | 35-3804 | Linkage Assy. | D |
|
- | ||||
| 26 | LA-2176 | Clutch Assy. |
|
- | |||||
| 27 | 25-7847 | Ring, Retaining (clutch Assy.) |
|
- | |||||
| 28 | 25-7416 | Washer, Flat |
|
- | |||||
| 28 | 25-7415 | Washer, Flat |
|
- | |||||
| 29 | 33-6114 | Spring |
|
- | |||||
| 30 | 35-2001 | Pinion, Drive |
|
- | |||||
| 31 | 33-3195 | Spring |
|
- | |||||
| 32 | 35-2692 | Drive Shaft & Hub Assy. |
|
- | |||||
| 33 | 25-7274 | Washer, Steel |
|
- | |||||
| 34 | 35-2817 | Washer, Nylon |
|
- | |||||
| 35 | 35-2070 | Washer, Steel W/tabs |
|
- | |||||
| 36 | 25-7933 | Ring, Retaining |
|
- | |||||
| 37 | 35-2527 | Gear, Cluster |
|
- | |||||
| 38 | 35-2631 | Gear, Crank |
|
- | |||||
| 39 | 35-2812 | Housing, Transmission |
|
- | |||||
| 40 | 35-2010 | Seal,transmission Housing(lip) |
|
- | |||||
| 41 | 35-2730 | Bearing Assy. (lower) |
|
- | |||||
| 41 | 35-2973 | Transmission Hsg Assy W/lwr Br |
|
- | |||||
| 42 | 35-3724 | Support, Tub | D |
|
- | ||||
| 42 | 35-2732 | Tub Support |
|
- | |||||
| 43 | 35-2798 | Tub Brace |
|
- | |||||
| 44 | 25-7930 | Screw 5/16-18x3/4 |
|
- | |||||
| 45 | 35-2015 | Suspension Housing |
|
- | |||||
| 45 | 35-3698 | Housing, Suspension | D |
|
- | ||||
| 46 | 35-2017 | Retainer, Brake Spring |
|
$ 5.85 | |||||
| 47 | 35-2112 | Spring, Brake |
|
- | |||||
| 48 | 35-2025 | Plate, Reinforcement | D |
|
- | ||||
| 48 | 25-7930 | Screw 5/16-18x3/4 |
|
- | |||||
| 49 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy |
|
- | |||||
| 50 | 35-2948 | Brake Rotor & Lining Assy |
|
- | |||||
| 51 | WP21002026 | Snubber (Replaces: 35-2357) |
|
Immediately | $ 9.68 | ||||
| 52 | 35-2018 | Stator, Brake |
|
- | |||||
| 53 | 25-7900 | Sems |
|
- | |||||
| 54 | W10124350 | Not Required Part Or See Note Spacer, Bearing |
|
- | |||||
| 55 | W10124350 | Not Required Part Or See Note Washer, Spring (curved) |
|
- | |||||
| 56 | W10124350 | Not Required Part Or See Note Washer, Race (upper) |
|
- | |||||
| 57 | W10124350 | Not Required Part Or See Note Bearing, Thrust |
|
- | |||||
| 58 | W10124350 | Not Required Part Or See Note Washer, Race (lower) |
|
- | |||||
| 59 | 12002213 | Drive Pulley (Replaces: 35-2683) |
|
Immediately | $ 98.84 | ||||
| 60 | 12002213 | Cam, Lower (Replaces: 35-2439) |
|
Immediately | $ 98.84 | ||||
| 61 | 35-2082 | Washer,1.25odx.530idx.062 |
|
$ 5.61 | |||||
| 61 | WP35-2132 | Washer,1.25odx.530idx.032 (Replaces: 35-2132) |
|
$ 0.65 | |||||
| 62 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) |
|
$ 10.68 | |||||
| 63 | 35-2007 | Cap, Dust |
|
- | |||||
| 64 | LA-2175 | Transmission Replacement Kit |
|
- | |||||
| 64 | 12002213 | Thrust Bearing Kit (Replaces: 12500036) |
|
Immediately | $ 98.84 | ||||
| 64 | 35-3748 | Transmission Assy | D |
|
- |
