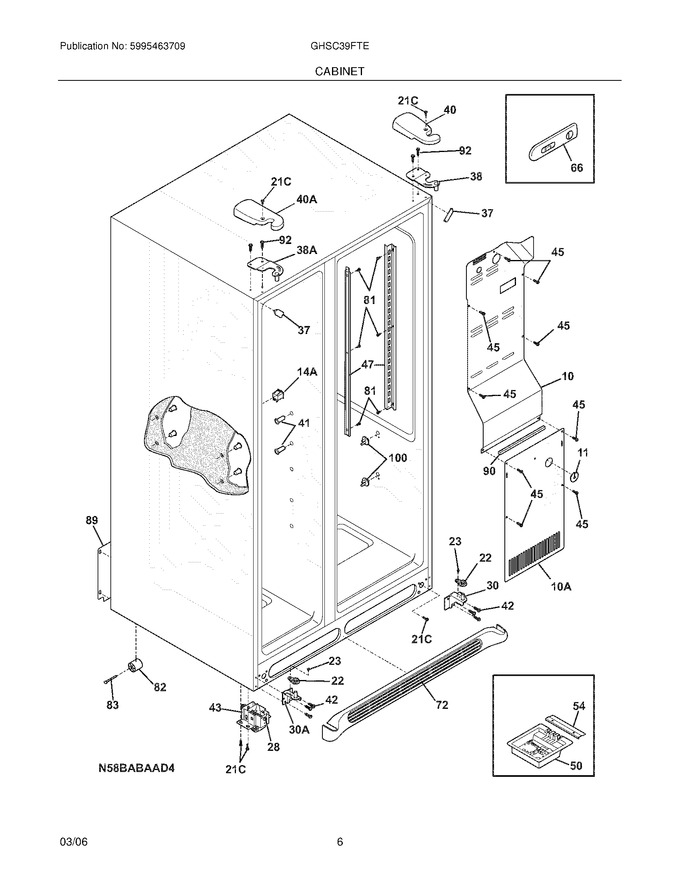

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	241509802		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
22	240457701		Plate-door Closer			Immediately	$ 56.70
23	240402701		Screw-no.10-32 X 1/4 Flat Hd				$ 21.79
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335501)			Immediately	$ 31.33
30	5303918455		Bracket-lower Hinge, Ref   (Replaces: 241603701)				$ 142.04
37	242161201		Trim-cabinet Corner,white ,(2)   (Replaces: 240337601)			Immediately	$ 2.93
38	241617901		Bracket-upper Hinge		Appelez-nous	-
40	241519201		Cover-hinge,white		Appelez-nous	-
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8   (Replaces: 240578901)			Immediately	$ 14.18
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 240335003)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500   (Replaces: 241500301)			Immediately	$ 4.55
47	241513001		Channel-shelf Mtg,side ,(2)				$ 112.24
50	241511102		Board-main Power				$ 450.77
54	241532401		Channel				$ 30.47
66	241513601		Damper Assy		Appelez-nous	-
72	241521608		Grille/kickplate,white		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
89	5304520905		Cover Access   (Replaces: 241574602)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg   (Replaces: 216850900)				$ 13.46
100	241993101		Support,crisper Cover ,front ,(4)   (Replaces: 240423701)			Immediately	$ 5.62
100	241993001		Support,crisper Cover ,rear ,(4)   (Replaces: 240350802)			Immediately	$ 19.23
10A	240475907		Cover-evap Coil,lower				$ 115.03
14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
30A	5303918455		Bracket-lower Hinge   (Replaces: 241603702)				$ 142.04
38A	241617902		Bracket-upper Hinge		Appelez-nous	-
40A	241519202		Cover-hinge,white		Appelez-nous	-
NI	241532501		Clip-harness		Appelez-nous	-
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46
NI	241524802		Seal,housing		Appelez-nous	-
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
NI	241591701		Louver		Appelez-nous	-
