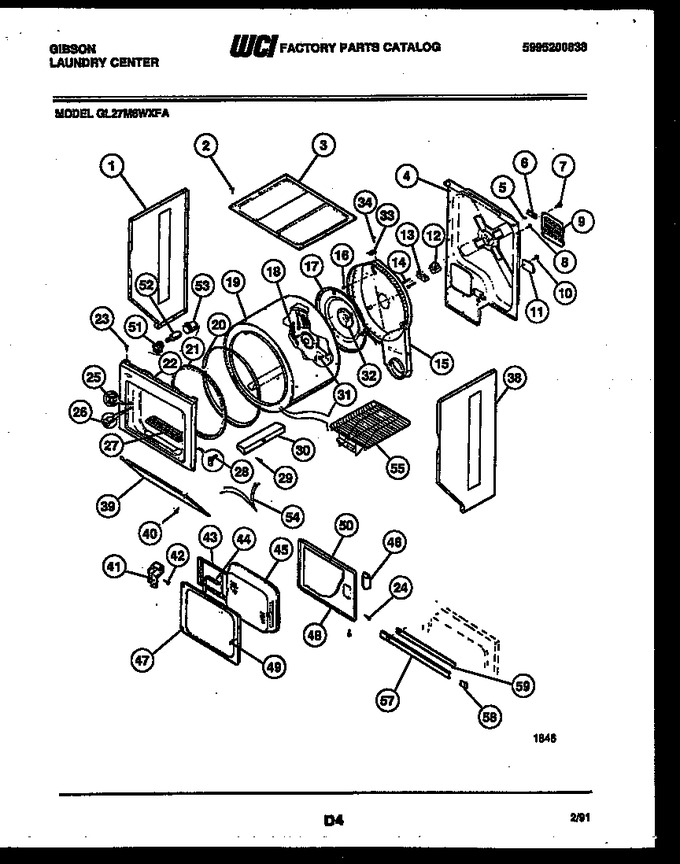

02 - Body Parts
03 - Blower, Idler Arm Clutch And Motor
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204246 | Panel - Side - Almond |
|
- | |||||
| 1 | 3204245 | Panel - Side - White |
|
- | |||||
| 2 | 08011280 | Screw |
|
- | |||||
| 3 | 3204247 | Panel-top |
|
- | |||||
| 4 | 3204248 | Panel - Rear |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip |
|
$ 17.01 | |||||
| 7 | 08011280 | Screw |
|
- | |||||
| 8 | 08011280 | Screw |
|
- | |||||
| 9 | 3204249 | Panel-motor Access |
|
- | |||||
| 10 | 08011280 | Screw |
|
- | |||||
| 11 | 3204250 | Cover-terminal Block |
|
$ 34.91 | |||||
| 12 | 131825900 | Rear Bearing (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 14 | 5303281033 | Screw |
|
- | |||||
| 15 | 5303207394 | Heater Housing & Duct |
|
$ 385.88 | |||||
| 16 | 5303212866 | Screws |
|
- | |||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 5303205255 | Screw |
|
$ 5.04 | |||||
| 19 | 3205628 | Drum |
|
- | |||||
| 20 | 3204259 | (ring) Bearing |
|
- | |||||
| 21 | 3204260 | Seal-bearing Support |
|
$ 114.50 | |||||
| 22 | 3204261 | Panel - Front - White |
|
$ 235.72 | |||||
| 22 | 3204262 | Panel - Front - Almond |
|
- | |||||
| 23 | 08011280 | Screw |
|
- | |||||
| 24 | 3281176 | Screw |
|
- | |||||
| 25 | 5366021400 | Door-catch (Replaces: 5303281055) |
|
Immediately | $ 55.99 | ||||
| 26 | 08006623 | Switch, Door |
|
- | |||||
| 27 | 3204264 | Air Grill-almond |
|
- | |||||
| 27 | 3204263 | Air Grill-white |
|
$ 116.39 | |||||
| 28 | 5303281074 | Guide Clip (4) |
|
$ 18.27 | |||||
| 29 | 131382300 | Screw (6) (Replaces: 3202754) |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (3) (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 5303207393 | Screw |
|
$ 6.14 | |||||
| 32 | 5303281153 | Support Shaft (Replaces: 5303281009) |
|
Immediately | $ 46.64 | ||||
| 33 | 5303207396 | Thermostat-safety |
|
- | |||||
| 34 | 5303161233 | Screw |
|
- | |||||
| 38 | 3204272 | Panel - Side - Almond |
|
- | |||||
| 38 | 3204271 | Panel - Side - White |
|
- | |||||
| 39 | 3204273 | Panel-access, White |
|
- | |||||
| 39 | 3204274 | Panel-access, Almond |
|
- | |||||
| 40 | 5303207397 | Screw |
|
- | |||||
| 41 | 3204275 | Hinge-upper |
|
$ 62.95 | |||||
| 42 | 3205239 | Screw-hinge To Door (4) |
|
- | |||||
| 43 | 3204278 | Lint Filter-white |
|
- | |||||
| 44 | 5303208613 | Door Gasket - White |
|
- | |||||
| 45 | 3204280 | Housing - Lint Filter - White |
|
- | |||||
| 46 | 3204282 | Door Handle-almond |
|
- | |||||
| 46 | 3204281 | Door Handle-white |
|
- | |||||
| 47 | 5303207398 | Inner Door - Almond |
|
- | |||||
| 47 | 3204283 | Inner Door-white |
|
- | |||||
| 48 | 3204285 | Outer Door-almond |
|
- | |||||
| 48 | 3204284 | Outer Door-white |
|
- | |||||
| 49 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Heat Shield (Replaces: 3204286) |
|
$ 60.25 | |||||
| 51 | 5303212867 | Receptacle-lamp |
|
- | |||||
| 52 | 131843500 | Lamp (Replaces: 5303212868) |
|
$ 73.00 | |||||
| 53 | 3204342 | Cover-lamp |
|
- | |||||
| 54 | 5303270324 | Harness-door Switch |
|
- | |||||
| 55 | 3204290 | Rack-drying |
|
- | |||||
| 57 | 5303270325 | Trim Strip |
|
- | |||||
| 58 | 3204293 | Trim Cap (2) |
|
- | |||||
| 59 | 5303211062 | Adhesive Strip |
|
- | |||||
| 41A | 3204276 | Hinge-lower |
|
- | |||||
| 42A | 3205239 | Screw-hinge To Front Panel (4) |
|
- |
