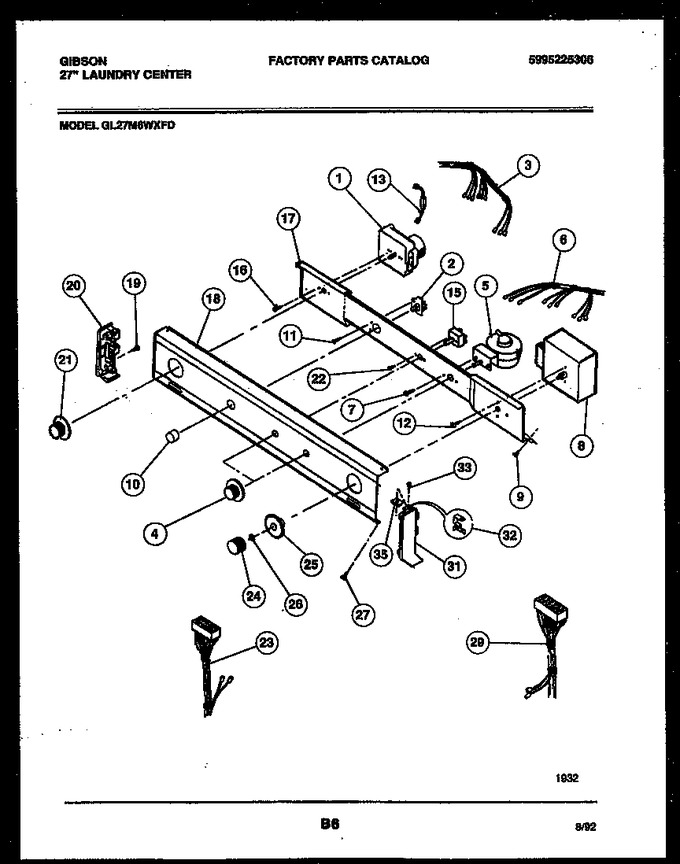

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062300		Timer-dryer   (Replaces: 5303285734)				$ 243.81
2	5303209890		Switch-start		Appelez-nous	-
3	5303270333		Harness-dryer Control		Appelez-nous	-
4	131858004		Knob-rotary (2)   (Replaces: 5303210338)			Immediately	$ 55.29
5	5303209894		Switch-water Level		Appelez-nous	-
6	131014200		Harness-washer Control		Appelez-nous	-
7	5303161233		Screw		Appelez-nous	-
8	5303271775		Timer-washer				$ 472.50
9	5303207399		Screw		Appelez-nous	-
10	3205632		Push Button		Appelez-nous	-
11	08001544		Screw		Appelez-nous	-
12	3161188		Screw		Appelez-nous	-
13	3205877		Resistor				$ 51.14
15	5308008463		Switch-temperature				$ 84.39
16	218359202		Screw   (Replaces: 5303283289)				$ 10.63
17	131025802		Bracket-control		Appelez-nous	-
18	5303270334		Panel-control		Appelez-nous	-
19	5303161233		Screw (4)		Appelez-nous	-
20	5303209671		End Cap-lh		Appelez-nous	-
21	131859104		Knob-dryer   (Replaces: 5303210340)			Immediately	$ 60.72
22	3161259		Screw				$ 6.83
23	5303271182		Harness-dryer		Appelez-nous	-
24	5303210341		Knob-washer		Appelez-nous	-
25	5303209901		Indicator-washer Timer		Appelez-nous	-
26	3205248		Spacer-shaft				$ 13.02
27	3205253		Screw		Appelez-nous	-
29	5303209145		Harness-washer		Appelez-nous	-
31	5303210650		End Cap-rh		Appelez-nous	-
32	3204357		Clip-grounding				$ 60.11
33	08010789		Screw (4)		Appelez-nous	-
35	5308014350		Clip (4)		Appelez-nous	-
*56280	5303210651		Pad-spacer Control Panel		Appelez-nous	-
*56280	5303286537		Buzzer				$ 93.61
*56281	218359202		Screw-buzzer   (Replaces: 5303283289)				$ 10.63
