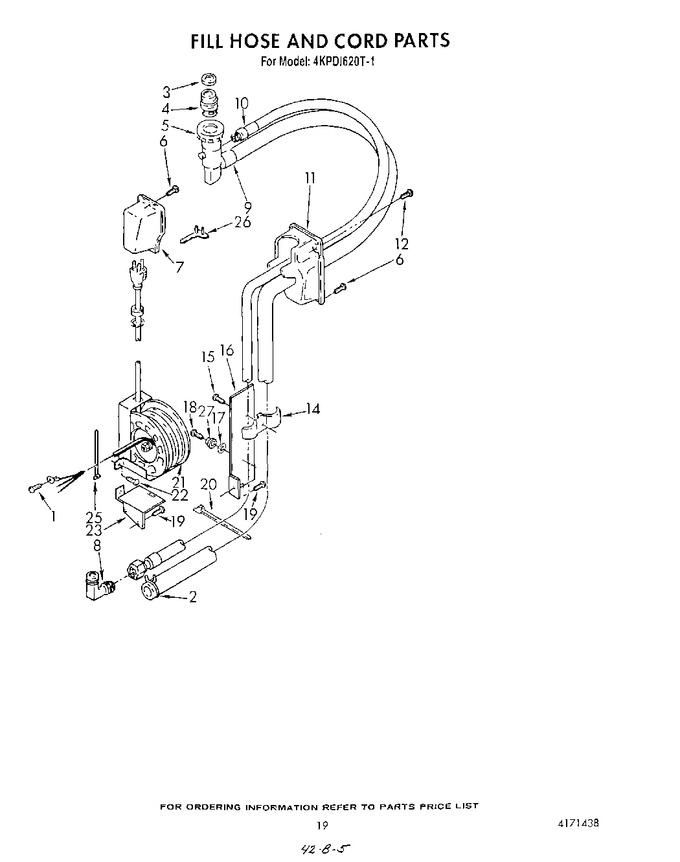

16 - Fill Hose And Cord


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4169388		Screw, 10-16 X 1/2		Appelez-nous	-
2	4162104		Clamp, Hose		Appelez-nous	-
3	4160964		Washer Kit		Appelez-nous	-
4	WPW10254672		Airator & Connector Assembly (includes Item 3)   (Replaces: 4160963)			Immediately	$ 49.54
5	4160378		Gasket, Seal		Appelez-nous	-
6	4159412		Screw, 6-20 X 3/8 (4)		Appelez-nous	-
7	4161098		Housing, Power Cord		Appelez-nous	-
8	4162393		Elbow, Tube Fitting		Appelez-nous	-
9	4160779		Coupler (includes Item 5)		Appelez-nous	-
10	4163283		Fill Hose Assy.		Appelez-nous	-
11	4161097		Housing, Hose Coupler		Appelez-nous	-
12	4159419		Screw, 6-20 X 5/8 (2)		Appelez-nous	-
14	4160698		Clamp, Hose		Appelez-nous	-
15	4159387		Screw, 10-16 X 3/8				$ 5.59
16	4162966		Bracket, Hose Anchor		Appelez-nous	-
17	4159913		Washer, Trim		Appelez-nous	-
18	4159408		Screw, 6-20 X 3/8		Appelez-nous	-
19	WP693304		Screw, 10-16 X 1/2 (3)   (Replaces: 4159468)				$ 7.04
20	4162935		Wire Tie		Appelez-nous	-
21	4163055		Cord Reel Assy. (incls. Item 25)		Appelez-nous	-
22	4159389		Screw, 10-16 X 1/2		Appelez-nous	-
23	4162964		Bracket, Cord Reel Mounting		Appelez-nous	-
25	4162103		Strap, Retaining		Appelez-nous	-
26	4161214		Guide, Locking		Appelez-nous	-
27	4160888		Spacer		Appelez-nous	-
