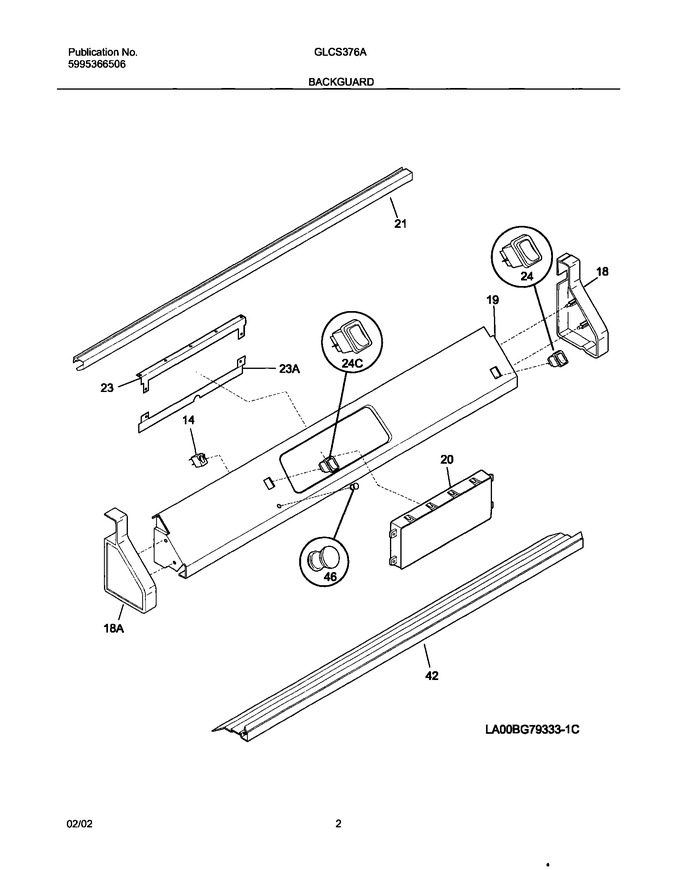

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303304668		End Cap, White, Rh		Appelez-nous	-
19	318182943		Panel,control Mtg. ,white		Appelez-nous	-
21	318027804		Trim-backguard,white ,top				$ 135.56
23	318015042		Bracket,clock Mtg ,upper		Appelez-nous	-
42	318106924		Trim,backguard ,white ,bottom				$ 132.04
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
18A	5303304671		End Cap, White, Lh		Appelez-nous	-
23A	318015043		Bracket,clock Mtg ,lower		Appelez-nous	-
F14	318076700		Light,indicator ,125v		Appelez-nous	-
F20	318185416		Clock/timer,electronic ,white		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F24C	316259800		Switch-speed Bake,white   (Replaces: 316114000)				$ 36.21
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
