SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

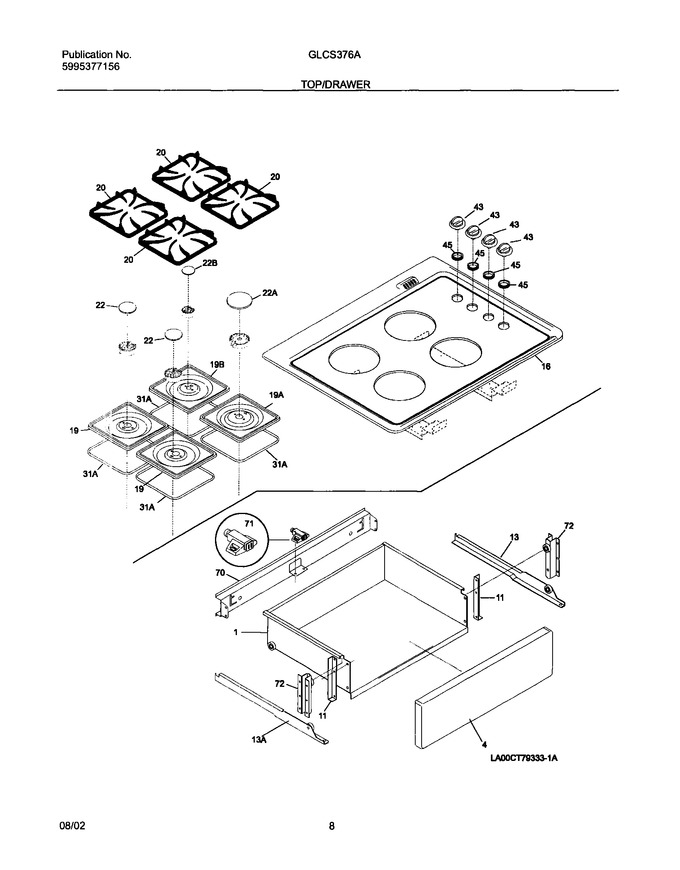

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 5303310500)			Immediately	$ 143.39
4	318134011		Panel,drawer ,white ,front		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318079224		Main Top,glass ,white		Appelez-nous	-
19	318168116		Pan,burner ,white ,medium				$ 97.65
20	318120104		Grate,grey ,(4)		Appelez-nous	-
22	318076411		Cap,burner ,grey ,medium Lf & Lr		Appelez-nous	-
43	318196140		Knob,control ,white				$ 80.38
45	318146210		Bushing		Appelez-nous	-
70	5303311143		Bracket,slide ,rear		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
19A	318168126		Pan,burner ,white ,large				$ 93.40
19B	318168106		Pan,burner ,white ,small				$ 77.29
22A	318076421		Cap,burner ,grey ,large Rf				$ 147.70
22B	318076401		Cap,burner ,grey ,small Rr		Appelez-nous	-
31A	318053901		Gasket,burner Pan				$ 33.60
NI	5303325173		Cap-plug		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
