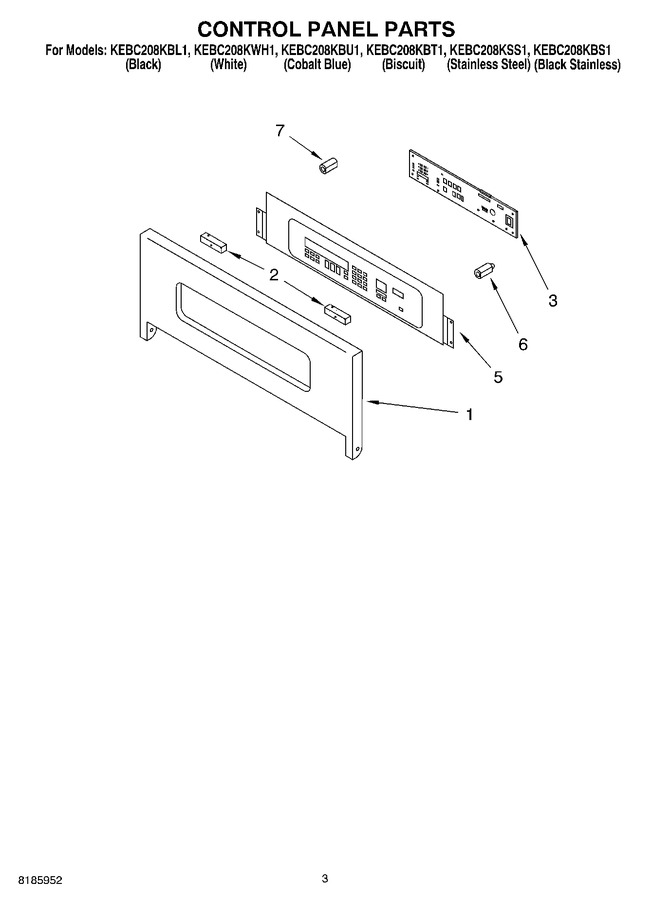

02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452604 | Panel, Control (black) |
|
- | |||||
| 1 | 4452605 | Panel, Control (white) |
|
- | |||||
| 1 | 4452974 | Panel, Control (biscuit) |
|
- | |||||
| 1 | 4451791 | Panel, Control Stainless Steel |
|
- | |||||
| 2 | 4452260 | Spacer, Foam |
|
- | |||||
| 3 | 4453379 | Microcomputer |
|
- | |||||
| 3 | 3400406 | Screw |
|
- | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 5 | 4455406 | Switch, Membrane (black) |
|
- | |||||
| 5 | 4455412 | Switch, Membrane (white) |
|
- | |||||
| 5 | 4455418 | Switch, Membrane (biscuit) |
|
- | |||||
| 5 | 4452379 | Switch, Membrane (stainless Steel) |
|
- | |||||
| 5 | WP3400832 | Switch, Membrane (screw) (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 6 | 4452248 | Insulator, Board |
|
- | |||||
| 7 | 4452249 | Insulator, Board Support |
|
- |
