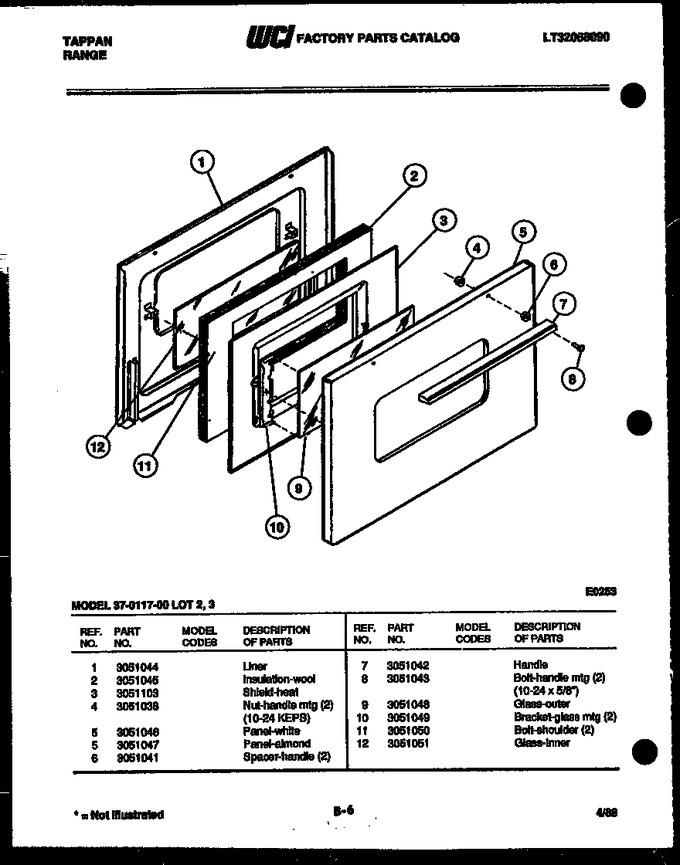

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051044 | Liner |
|
- | |||||
| 2 | 3051045 | Insulation-wool |
|
- | |||||
| 3 | 3051103 | Shield-heat |
|
- | |||||
| 4 | 3051038 | Nut-handle Mtg (2) (10-24 Keps) |
|
- | |||||
| 5 | 3051046 | Panel-white |
|
- | |||||
| 6 | 3051041 | Spacer Handle (2) |
|
- | |||||
| 7 | 3051042 | Handle |
|
- | |||||
| 8 | 3051043 | Bolt-handle Mtg (2) (10-24 X 5/8``) |
|
- | |||||
| 9 | 3051048 | Glass-outer |
|
- | |||||
| 10 | 3051049 | Bracket-glass Mtg (2) |
|
- | |||||
| 11 | 3051050 | Bolt-shoulder (2) |
|
$ 12.29 | |||||
| 12 | 3051051 | Glass-inner |
|
- |
