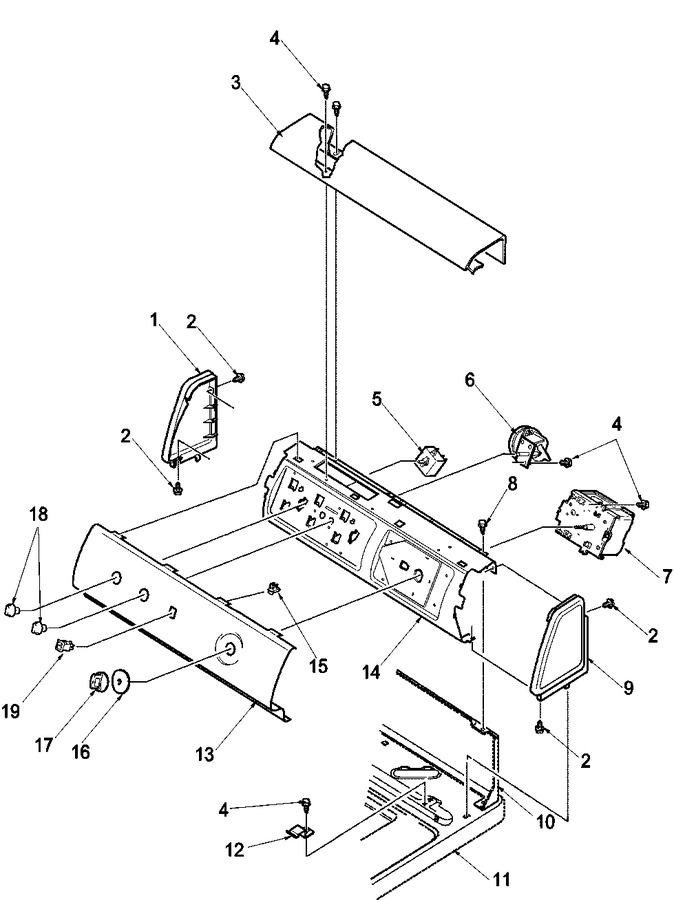

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D504009WP | Cap-end Lh (Replaces: 504009W) |
|
Immediately | $ 22.20 | ||||
| 2 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) |
|
Immediately | $ 7.04 | ||||
| 3 | 38231W | Cover, Top |
|
$ 25.60 | |||||
| 4 | WP90767 | Screw,8b-18 X 3/8 Ind (Replaces: 23962) |
|
Immediately | $ 7.04 | ||||
| 5 | 35115 | Switch,temperature 3 P |
|
$ 30.67 | |||||
| 6 | 39035P | Pressure Switch (Replaces: 35010) |
|
$ 106.41 | |||||
| 7 | 37927P | Timer, 115v/60hz 4 Cy (Replaces: 37927) |
|
$ 250.10 | |||||
| 8 | W11233072 | Screw,8-18 X 3/8 Phil Pan Hd (Replaces: 34904) |
|
Immediately | $ 12.62 | ||||
| 9 | D504008WP | Cap-end Rh (Replaces: 504008W) |
|
$ 19.23 | |||||
| 10 | 37782 | Control Hood Back Panel |
|
$ 26.14 | |||||
| 11 | 37992WP | Top, Home W/bleach |
|
$ 250.25 | |||||
| 12 | 35887 | Hold-down Clip |
|
- | |||||
| 13 | 38831W | Panel, Graphic-sw |
|
- | |||||
| 14 | 38171 | Panel, Control Support |
|
$ 46.87 | |||||
| 15 | Y00161 | Ground Clip |
|
- | |||||
| 16 | 38841W | Skirt, Timer Knob |
|
- | |||||
| 17 | 33898W | Knob, Timer (white) |
|
$ 2.52 | |||||
| 18 | WP36701W | Assy,knob-rotary-white (Replaces: 33688) |
|
Immediately | $ 44.31 |
