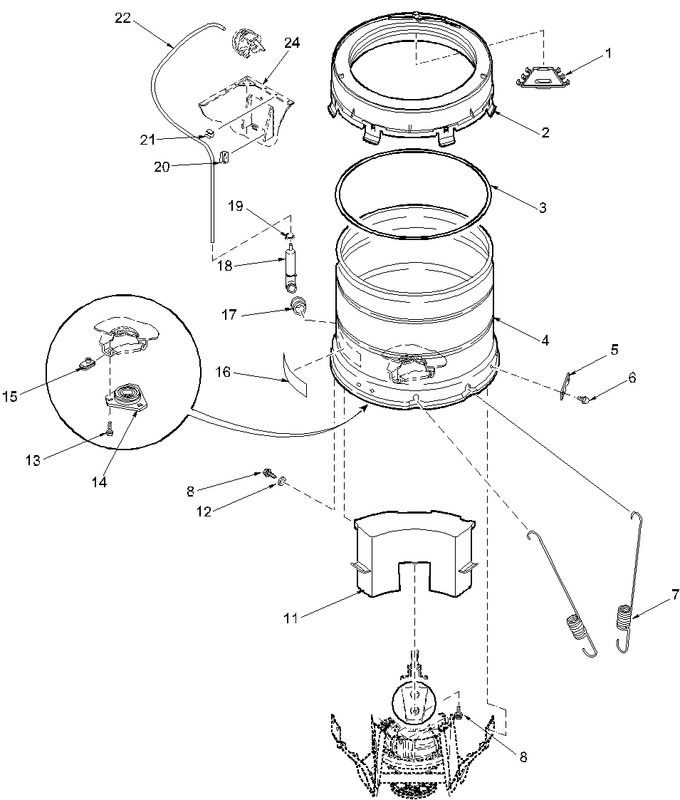

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 37514 | Water Inlet Channel |
|
- | |||||
| 2 | 39169 | Cover, Outer Tub (Replaces: 37502) |
|
$ 66.08 | |||||
| 3 | 38359 | Gasket, Tub Cover Large |
|
$ 12.08 | |||||
| 4 | 37813P | Tub, Outer-tall |
|
$ 497.65 | |||||
| 5 | 27926 | Plate,leg .063 |
|
- | |||||
| 6 | 35369 | Screw |
|
Immediately | $ 6.95 | ||||
| 7 | 37575 | Module Springs |
|
Immediately | $ 9.67 | ||||
| 8 | 37766 | Screw |
|
- | |||||
| 11 | 205612 | Assy, Counterweight (Replaces: 38769) |
|
Immediately | $ 36.36 | ||||
| 12 | 37767 | Washer, Aluminum .28x |
|
- | |||||
| 13 | 3400500 | Screw, Cap (Replaces: 36991) |
|
Immediately | $ 12.03 | ||||
| 14 | WP40004201P | Bearing Housing Assembly (Replaces: 27182) |
|
$ 106.01 | |||||
| 15 | 27222 | Nut,retainer 5/16-18 |
|
$ 6.95 | |||||
| 16 | 500049 | Sticker |
|
- | |||||
| 17 | 29175 | Grommet |
|
$ 8.56 | |||||
| 18 | COMM PART | Pressure Bulb (Replaces: 30907) |
|
- | |||||
| 19 | WP596669 | Hose Clamp (Replaces: Y22294) |
|
Immediately | $ 7.56 | ||||
| 20 | 36985 | Clip, Hose |
|
- | |||||
| 21 | 21036 | Clip,cable |
|
$ 62.49 | |||||
| 22 | 29213 | Pressure Hose |
|
- | |||||
| 24 | 34475LP | Cabinet |
|
- |
