Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4171306 Upper Rack Assembly (includes Items 2, 3, 4, 5 & 15) Appelez-nous -
2 4161226 Nut, Roller Appelez-nous -
3 4171358 Bearing & Spacer, Rack Roller Appelez-nous -
4 4162452 Washer Appelez-nous -
5 4159428 Screw, 10-16 X 1 Appelez-nous -
6 4162442 Track, Rack Appelez-nous -
7 4159466 Screw, 10-16 X 3/8 Appelez-nous -
8 4162943 Gasket, Rack Stud Appelez-nous -
9 4162945 Stud, Rack Roller Appelez-nous -
11 4162944 Roller, Rack Track Appelez-nous -
12 4162946 Bushing, Rack Roller Appelez-nous -
13 4162084 Bumper, Rack Track Appelez-nous -
14 4160423 Stud, Bumper Retaining Appelez-nous -
15 4162048 Bumper, Upper Rack Appelez-nous -
16 4171224 Clip, Wash Arm Guard Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

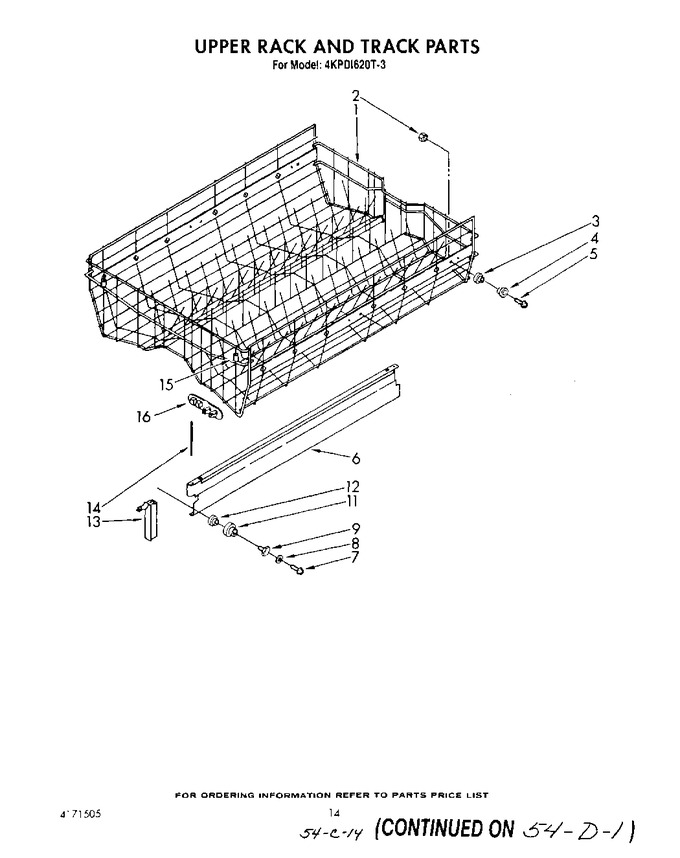

Diagram for 4KPDI620T3
