SELECT A DIAGRAM

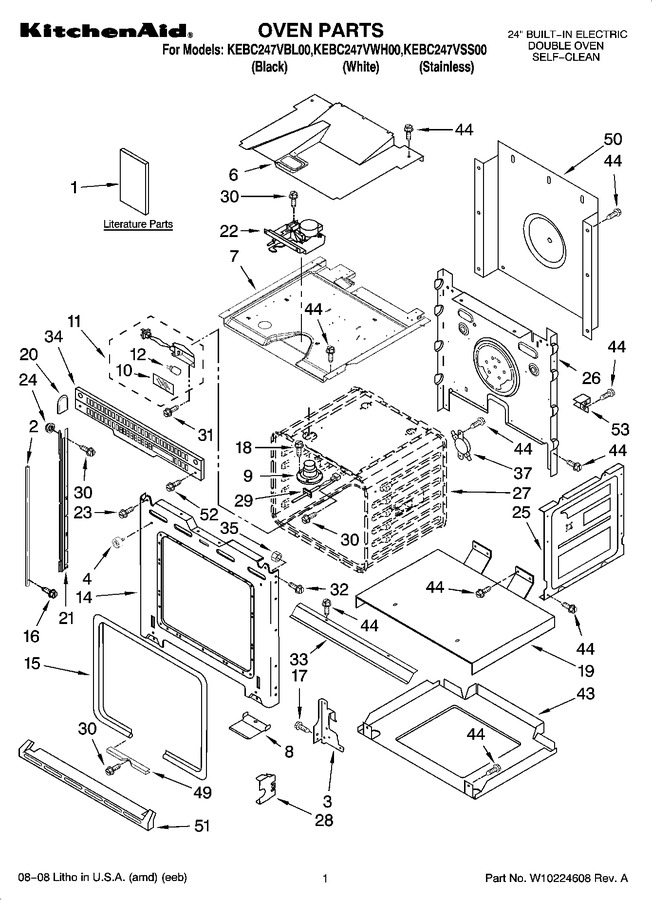

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185219		Tech Sheet		Appelez-nous	-
1	W10223188		Owners Manual (french)		Appelez-nous	-
1	4449264		Easy Set Guide		Appelez-nous	-
1	W10045010		Installation Instructions		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	4457288		Installation Instructions (bottom Trim)		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10203458		Owners Manual (english)		Appelez-nous	-
2	4455427		Trim, Side Left (black)				$ 93.75
2	4455426		Trim, Side Right (black)		Appelez-nous	-
2	4455375		Trim, Side Right (white)				$ 79.35
2	WPW10144985		Trim, Side Right (stainless)   (Replaces: W10144985)				$ 203.59
2	WPW10144986		Trim, Side Left (stainless)   (Replaces: W10144986)				$ 202.78
2	4455374		Trim, Side Left (white)				$ 77.53
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
4	W10105790		Bumper, Door				$ 6.35
6	8302347		Divider, Vent		Appelez-nous	-
7	4455863		Top Chassis				$ 100.80
8	W10145009		Deflector, Vent Box (white & Stainless)   (Replaces: 4452489)				$ 69.95
8	4455807		Deflector, Vent Box (black)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	W10169756		Lens, Light				$ 36.16
11	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 99.44
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
14	9760754		Frame, Front				$ 113.71
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 149.82
16	WP8281236		Screw   (Replaces: 8281236)				$ 6.80
17	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
18	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 203.87
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 204.20
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 295.79
23	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
24	WP4448444		Grommet   (Replaces: 4448444)				$ 6.73
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 129.16
26	4452232		Back, Chassis		Appelez-nous	-
28	4452152		Bracket, Mounting				$ 30.15
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
30	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
31	4449748		Screw				$ 12.20
32	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
33	9760675		Deflector, Vent				$ 76.62
34	W10358914		Trim, Center Vent   (Replaces: 4452265)		Appelez-nous	-
35	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
37	WP9759242		Thermostat (tod)   (Replaces: 9759242)			Immediately	$ 77.01
43	4450525		Base, Chassis		Appelez-nous	-
44	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
51	8300829		Assembly, Vent Bottom Trim (white)		Appelez-nous	-
51	W10151036		Assembly, Vent Bottom Trim (stainless)				$ 66.66
51	8300828		Assembly, Vent Bottom Trim (black)		Appelez-nous	-
52	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
53	4449845		Support, Bracket		Appelez-nous	-
	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 162.19
	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 162.55

    View Diagram in Separate Window       Print Part List
