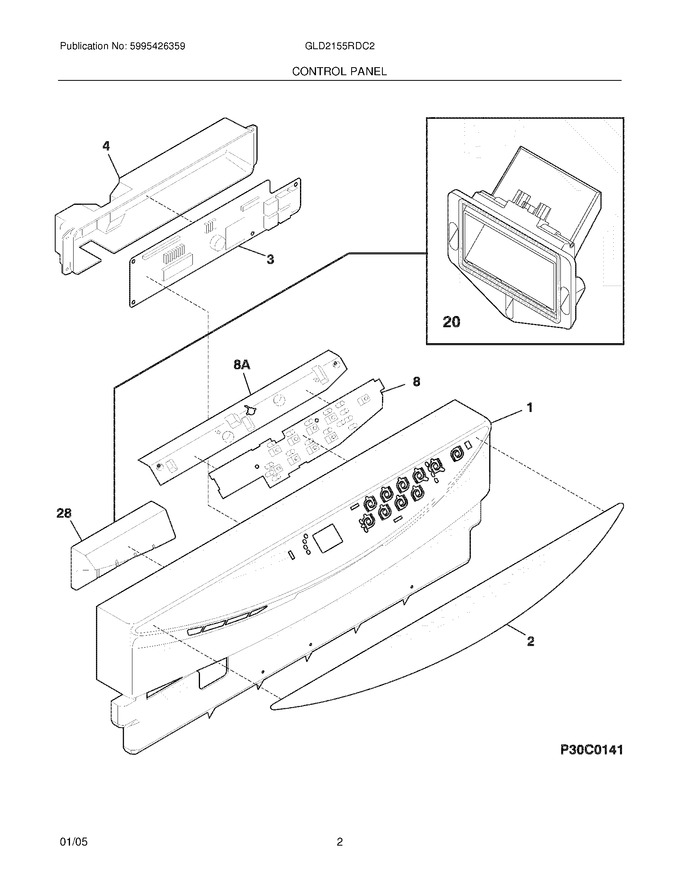

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154486003		Panel,control ,black		Appelez-nous	-
2	154483603		Insert,control Panel ,9 Pad ,black		Appelez-nous	-
4	154460601		Cover,control		Appelez-nous	-
20	154433001		Vent Assy,static Dry				$ 50.82
28	154474401		Adapter,vent				$ 52.92
8A	154486201		Shield,tactile Switch				$ 49.56
F3	154470602		Control				$ 397.01
F8	154474701		Switch,selector ,9 Pad				$ 225.38
NI	154540014		Energy Guide Label		Appelez-nous	-
NI	154478901		Gasket,cover				$ 61.66
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154476401		Wiring Harness		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56

    View Diagram in Separate Window       Print Part List
