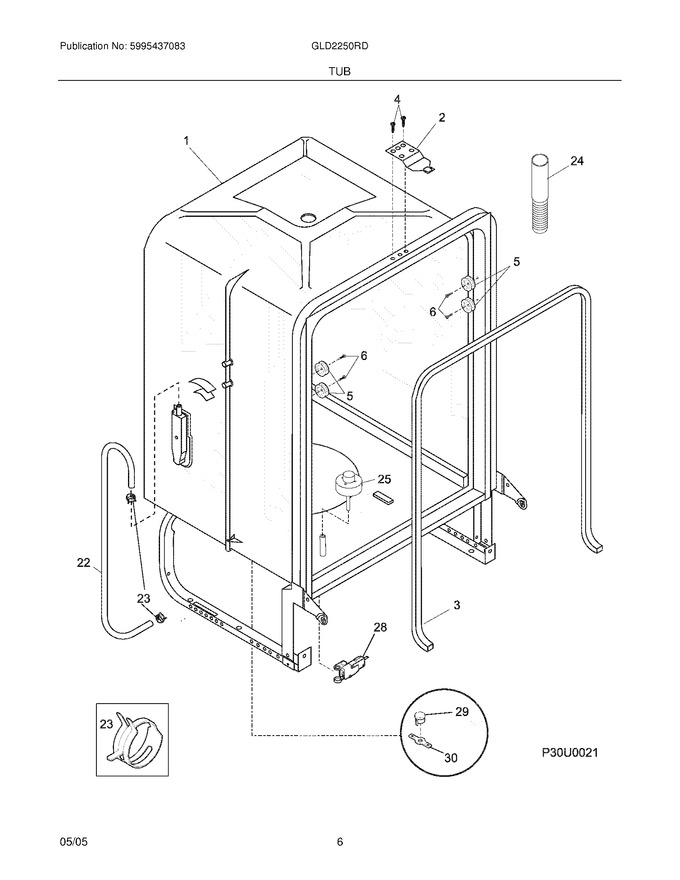

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 154662601 | Strike,door (Replaces: 154429101) |
|
Immediately | $ 39.69 | ||||
| 4 | 154200602 | Screw,10-16 X 3/8 ,hex |
|
$ 10.21 | |||||
| 5 | 5304507405 | Roller,tub (Replaces: 154333902) |
|
Immediately | $ 25.79 | ||||
| 6 | 5303943103 | Screw W/washer,(8) |
|
Immediately | $ 17.72 | ||||
| 22 | 5304523457 | Tubing,water Inlet (Replaces: 154446002) |
|
Immediately | $ 14.03 | ||||
| 23 | 5304538466 | Clamp-tubing,(2) (Replaces: 5303318539) |
|
$ 2.31 | |||||
| 28 | 154773201 | Switch Assy,float (Replaces: 154408701) |
|
Immediately | $ 55.29 | ||||
| 30 | 154241101 | Retainer,thermostat |
|
$ 3.62 | |||||
| F1 | 154534701 | Tub Assy,w/frame Parts |
|
$ 387.35 | |||||
| F24 | 807117001 | Hose,drain (Replaces: 154525301) |
|
Immediately | $ 36.14 | ||||
| F25 | 5304532207 | Float (Replaces: 154209701) |
|
Immediately | $ 6.89 | ||||
| F29 | 154290204 | Thermostat,re-settable |
|
Immediately | $ 64.49 | ||||
| F3 | 8581548276014 | Gasket-tub (Replaces: 154211801) |
|
Immediately | $ 26.30 | ||||
| NI | 154297701 | Screw,retainer-thermo |
|
$ 13.46 | |||||
| NI | 154641601 | Insulation,blanket (Replaces: 154447102) |
|
$ 6.15 | |||||
| NI | 154041001 | Screw,plask No.1 ,10-10 X 9/16 |
|
- | |||||
| NI | 5300807270 | Screw,(2) ,countertop Mtg. |
|
$ 6.72 |
