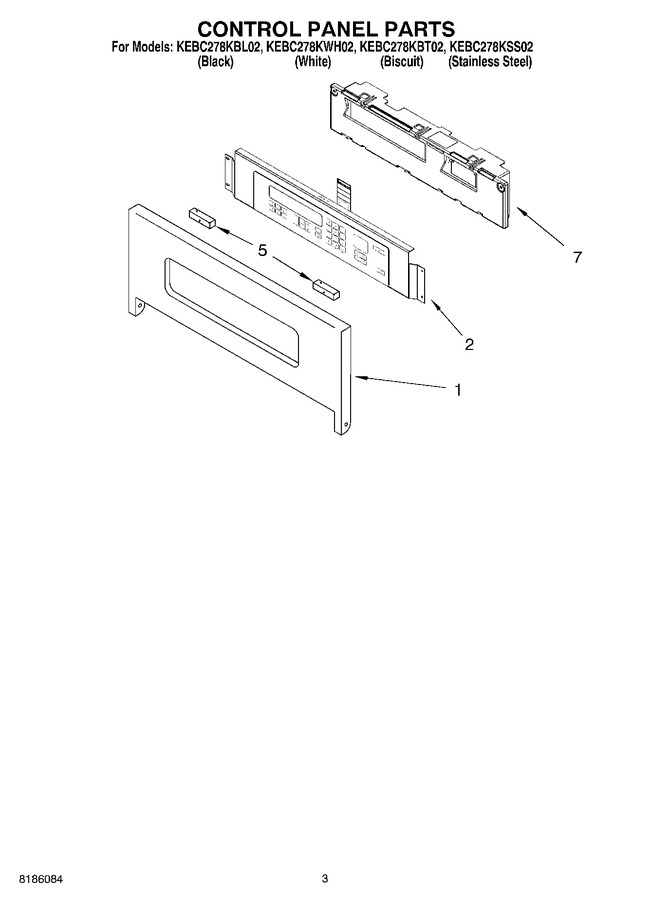

02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452602 | Panel, Control (black) |
|
- | |||||
| 1 | 4452603 | Panel, Control (white) |
|
- | |||||
| 1 | 4452973 | Panel, Control (biscuit) |
|
- | |||||
| 1 | 4451790 | Panel, Control (stainless Steel) |
|
- | |||||
| 2 | 8301969 | Switch, Membrane (black) |
|
- | |||||
| 2 | 8301970 | Switch, Membrane (white) |
|
- | |||||
| 2 | 8301971 | Switch, Membrane (biscuit) |
|
- | |||||
| 2 | 8301972 | Switch, Membrane (stainless Steel) |
|
- | |||||
| 5 | 4452260 | Spacer, Foam |
|
- | |||||
| 7 | 8301890 | Assy, Control |
|
- | |||||
| 7 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 7 | 8301848 | Latch, Sister Board |
|
$ 184.23 |
