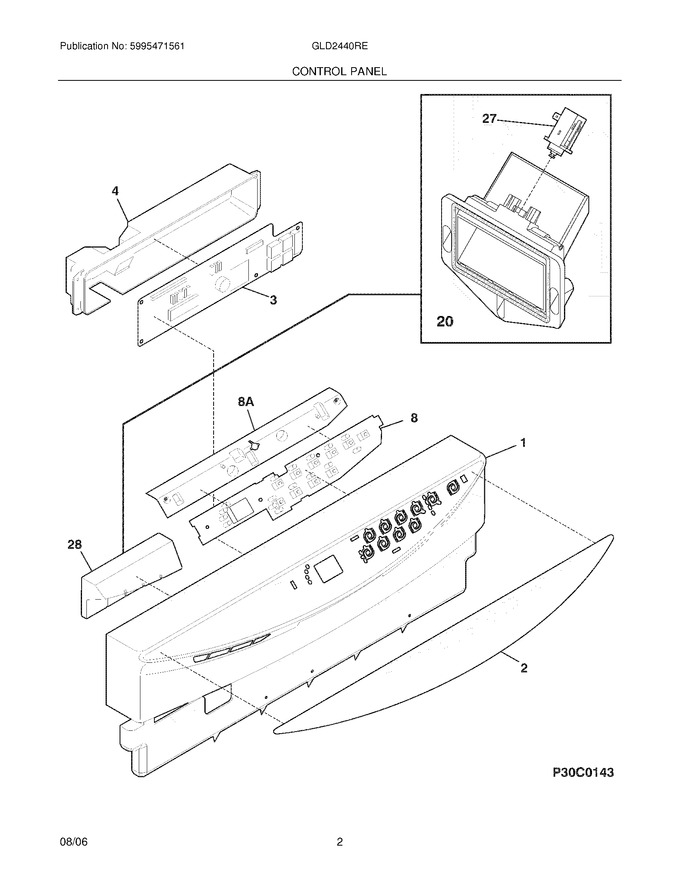

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154486004		Panel,control ,bisque		Appelez-nous	-
2	154483804		Insert,control Panel ,bisque ,10 Pad		Appelez-nous	-
3	154663004		Board,control   (Replaces: 154555004)				$ 284.11
4	154554601		Cover,control				$ 25.62
20	154423601		Vent Assy,active Dry ,w/actuator				$ 198.55
27	154433501		Actuator,active Dry Vent		Appelez-nous	-
28	154474401		Adapter,vent				$ 52.92
8A	154486201		Shield,tactile Switch				$ 49.56
F8	154474601		Switch,selector ,10 Pad				$ 287.02
NI	154436201		Screw,dry Duct ,(3)		Appelez-nous	-
NI	154478901		Gasket,cover				$ 61.66
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154546801		Wiring Harness,main		Appelez-nous	-
NI	154540024		Energy Guide Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
