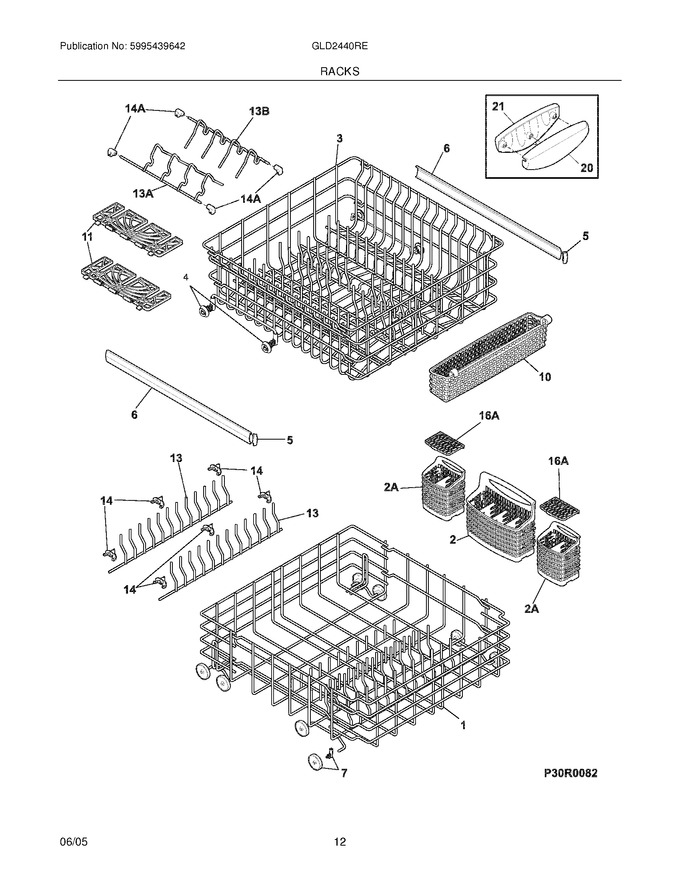

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140222632022		Rack Assy,lower ,grey   (Replaces: 154432604)			Immediately	$ 134.18
2	5304535382		Basket,silverware ,grey ,main   (Replaces: 154424002)			Immediately	$ 25.43
3	154319526		Rack Assy,upper				$ 249.06
4	154522902		Wheel & Bushing Assy,grey ,upper Rack ,(8)				$ 39.54
5	5304506510		Cap,slide ,grey ,(4)   (Replaces: 5304440996)			Immediately	$ 7.23
6	154597801		Slide,rack ,(2)   (Replaces: 154232701)			Immediately	$ 9.36
7	5304532229		Wheel & Bracket Assy,grey ,lower Rack ,(8)   (Replaces: 154174503)			Immediately	$ 12.75
10	154466902		Basket,utility ,grey				$ 64.94
11	5304532945		Shelf,cup ,half Width ,grey   (Replaces: 154436104)				$ 7.42
13	140054938026		Fence,fold Down ,grey ,lower Rack ,(2) ,full Length   (Replaces: 154425503)			Immediately	$ 14.70
14	154428402		Bracket,fold Down Fence ,grey ,lower Rack,(6)			Immediately	$ 25.05
20	154530802		Handle,pull ,front ,upper Rack				$ 22.10
21	5304504913		Handle,pull ,grey ,rear ,upper Rack   (Replaces: 154530902)				$ 13.74
13A	154740304		Fence,multi,4 Wire ,lh ,upper Rack   (Replaces: 154480403)			Immediately	$ 32.61
13B	5304532950		Fence,multi,4 Wire ,rh ,upper Rack   (Replaces: 154480503)			Immediately	$ 19.76
14A	5304506508		Bracket,multi Fence ,white ,upper Rack ,(4)   (Replaces: 154242002)			Immediately	$ 5.79
16A	154424303		Cover,side Basket ,grey ,(2) ,silverware				$ 39.59
2A	5304535382		Basket,silverware ,grey ,(2) ,side   (Replaces: 154424102)			Immediately	$ 25.43
F14A	154242102		Bushing,multi Fence ,upper Rack ,(4)				$ 3.41
