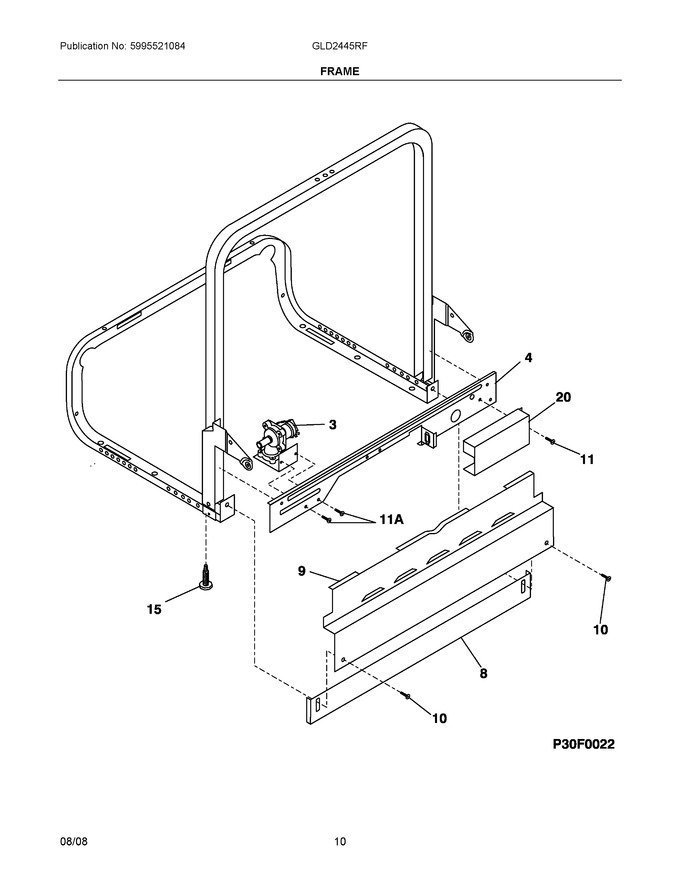

06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 154637401 | Valve, Water |
|
Immediately | $ 21.36 | ||||
| 4 | 154669301 | Brace, Front Frame |
|
$ 44.31 | |||||
| 8 | 5304529111 | Toeplate, Adjustable, Bisque (Replaces: 154589405) |
|
$ 24.97 | |||||
| 9 | 5304529111 | Kickplate Assy, Bisque (Replaces: 154589505) |
|
$ 24.97 | |||||
| 10 | 154371303 | Screw, Phillips Head, Bisque |
|
$ 10.61 | |||||
| 11 | 134154100 | Screw, #10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| 15 | 5304506540 | Leg, Leveling, (4) (Replaces: 154571101) |
|
Immediately | $ 10.85 | ||||
| 20 | 154758501 | Cover, Junction Box (Replaces: 154597001) |
|
$ 20.84 | |||||
| 11A | 154200601 | Screw, #10-16 X 3/8 |
|
$ 7.98 | |||||
| NI | 154041001 | Screw, Plask #1, 10-10 X 9/16 |
|
- | |||||
| NI | 154200602 | Screw, 10-16 X 3/8, Hex |
|
$ 10.21 | |||||
| NI | 808326801 | Screw, #8-18 X .375 (Replaces: 154409401) |
|
$ 2.84 |
