SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

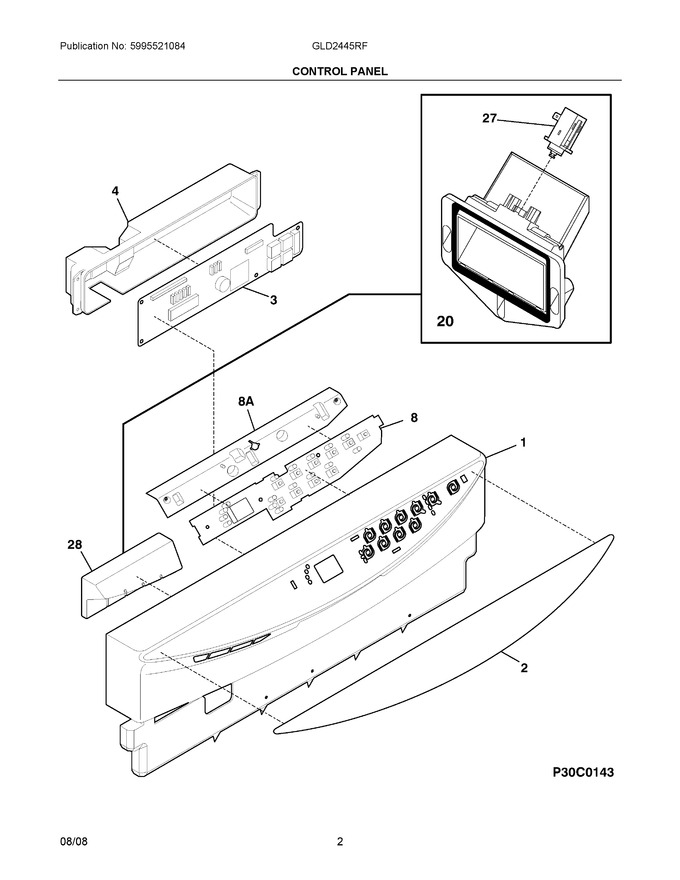

1	154662501		Panel, Control, White				$ 92.56
2	154721901		Insert, Control Panel, White				$ 44.57
3	154663004		Board, Control   (Replaces: 154596504)				$ 284.11
4	154554601		Cover, Control				$ 25.62
8	154474601		Switch, Selector, 10 Pad				$ 287.02
20	154423601		Vent Assy, Active Dry, W/actuator				$ 198.55
27	154433501		Actuator, Active Dry Vent		Appelez-nous	-
28	154474401		Adapter, Vent				$ 52.92
8A	154486201		Shield, Tactile Switch				$ 49.56
NI	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 9.22
NI	154646001		Wiring Harness, Main		Appelez-nous	-
NI	154678508		Energy Guide Label		Appelez-nous	-
NI	808326801		Screw, #8-18 X .375   (Replaces: 154409401)				$ 2.84
NIA	154436201		Screw, Dry Duct, (3)		Appelez-nous	-
NIA	154478901		Gasket, Cover				$ 61.66

    View Diagram in Separate Window       Print Part List
