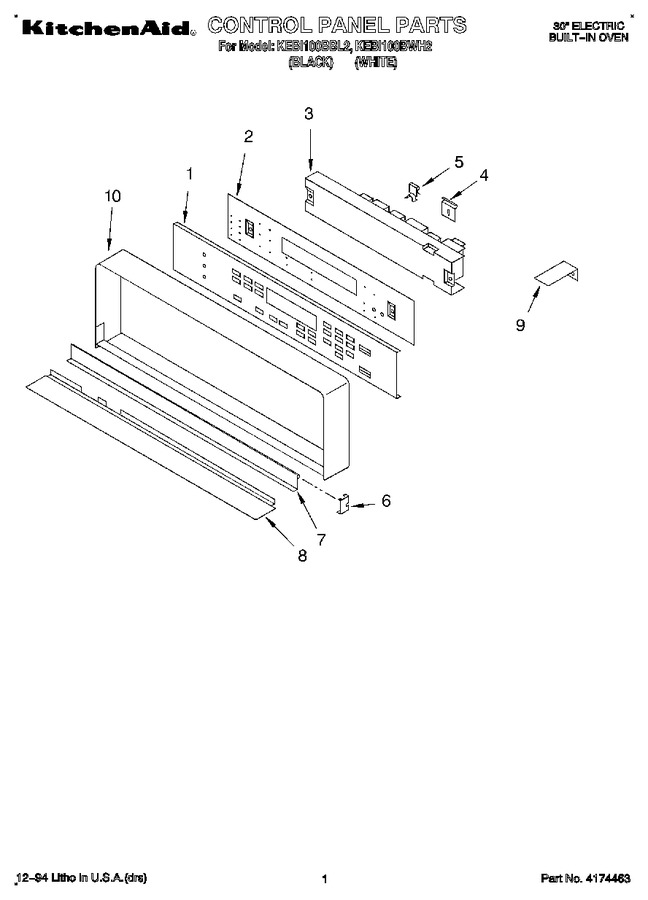

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4454371		Membrane, Switch (black)		Appelez-nous	-
1	4454372		Membrane, Switch (white)		Appelez-nous	-
2	3183794		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181702		Microcomputer		Appelez-nous	-
4	3184567		Clip, Control Frame		Appelez-nous	-
4	309133		Screw (2)		Appelez-nous	-
5	3182985		Clip, Retainer (3)		Appelez-nous	-
6	3182162		Trim, Door		Appelez-nous	-
7	3179847		Door, Latch Handle (screw (2))		Appelez-nous	-
7	3182152		Door, Latch Handle (black)		Appelez-nous	-
7	3182155		Door, Latch Handle (white)		Appelez-nous	-
8	3183703		Trim, Panel		Appelez-nous	-
9	3182939		Screw (2)		Appelez-nous	-
9	3185424		Bracket (2)		Appelez-nous	-
10	3187949		Frame, Control Panel (white Model)		Appelez-nous	-
10	3187948		Frame, Control Panel (black Model)		Appelez-nous	-
