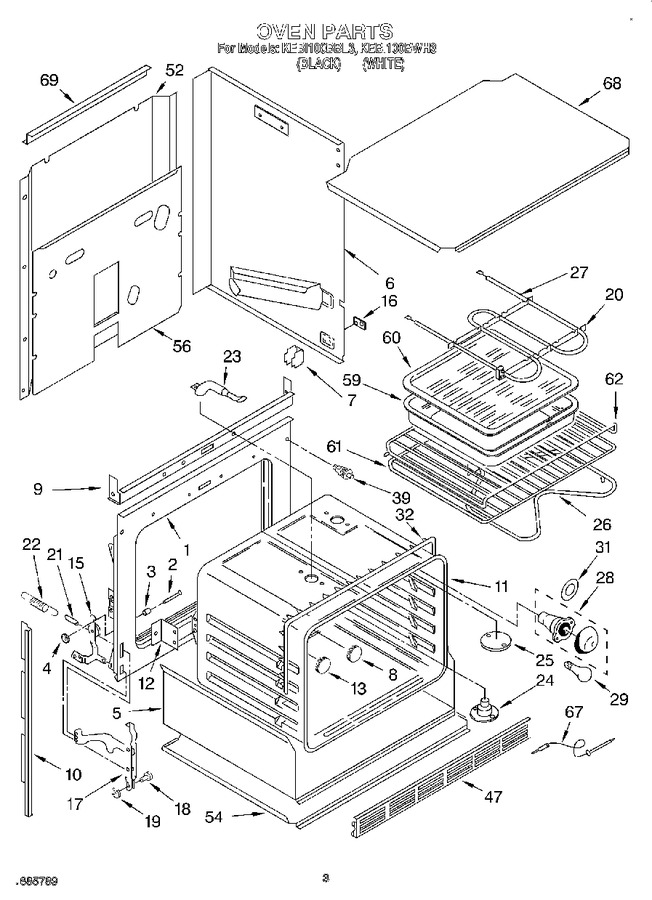

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186975		Frame Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3185944		Insulation Tray		Appelez-nous	-
6	3185956		Side Wrapper (l.h.)		Appelez-nous	-
6	WP488729		Screw (14)   (Replaces: 3148107)			Immediately	$ 7.01
6	3185953		Side Wrapper (r.h.)		Appelez-nous	-
7	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
8	3185086		Button, Plug		Appelez-nous	-
9	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
9	3183796		Baffle, Top Insulation		Appelez-nous	-
10	3149237		Side Trim (rh, Black Model)		Appelez-nous	-
10	WP488729		(side Trim R.h.) (screw (8))   (Replaces: 3148107)			Immediately	$ 7.01
10	3187906		Side Trim (white Model, R.h.)		Appelez-nous	-
10	3149236		Side Trim (lh, Black Model)		Appelez-nous	-
10	3187912		Side Trim (white Model, Lh)		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
11	3182032		Oven		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	3182814		Button, Plug		Appelez-nous	-
15	3185662		Hinge, Ear (right Side)		Appelez-nous	-
15	3185663		Hinge, Ear (left Side)		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
17	3185664		Channel Arm (2)				$ 54.97
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	4159465		Screw, (2)		Appelez-nous	-
20	3180694		Bracket, Element		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	3183792		Tube, Vent		Appelez-nous	-
23	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
24	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
24	3186684		Smoke Eliminator		Appelez-nous	-
25	310662		Plate, Cover		Appelez-nous	-
25	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
26	3150532		Screw (2)		Appelez-nous	-
26	WP661416		Unit, Bake   (Replaces: 661416)				$ 131.33
27	661417		Unit, Broil		Appelez-nous	-
27	4159465		Screw (4)		Appelez-nous	-
28	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
28	308043		Screw (2)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
31	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
32	3185197		Seal, Front		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
47	3150350		Bottom Grill (white Model)		Appelez-nous	-
47	WP488627		Bottom Grill (screw (3))   (Replaces: 338156)				$ 6.81
47	309029		Bottom Grill (screw (3))		Appelez-nous	-
47	3150349		Bottom Grill (black Model)		Appelez-nous	-
52	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.01
52	3185961		Cover, Rear		Appelez-nous	-
52	247326		Screw		Appelez-nous	-
54	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 7.01
54	3185945		Cover, Bottom		Appelez-nous	-
56	3182052		Panel, Back		Appelez-nous	-
59	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 52.04
60	4396923		Grid, Broiler Pan   (Replaces: 3147563)			Immediately	$ 52.04
61	3185641		Rack, Oven				$ 67.33
62	3185640		Rack, Oven Offset		Appelez-nous	-
67	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
67	3148440		Sensor, Heat		Appelez-nous	-
68	3184099		Cover, Top		Appelez-nous	-
69	312713		Screw		Appelez-nous	-
69	3149328		Insulation, Top		Appelez-nous	-
69	3182585		Bracket, Control Panel Mounting		Appelez-nous	-
69	4454421		Insulation, Wrap		Appelez-nous	-
	LIT3188198		Use & Care Guide		Appelez-nous	-
	LIT3186506		Tech Sheet		Appelez-nous	-
	LIT3182137		Installation Instructions		Appelez-nous	-
