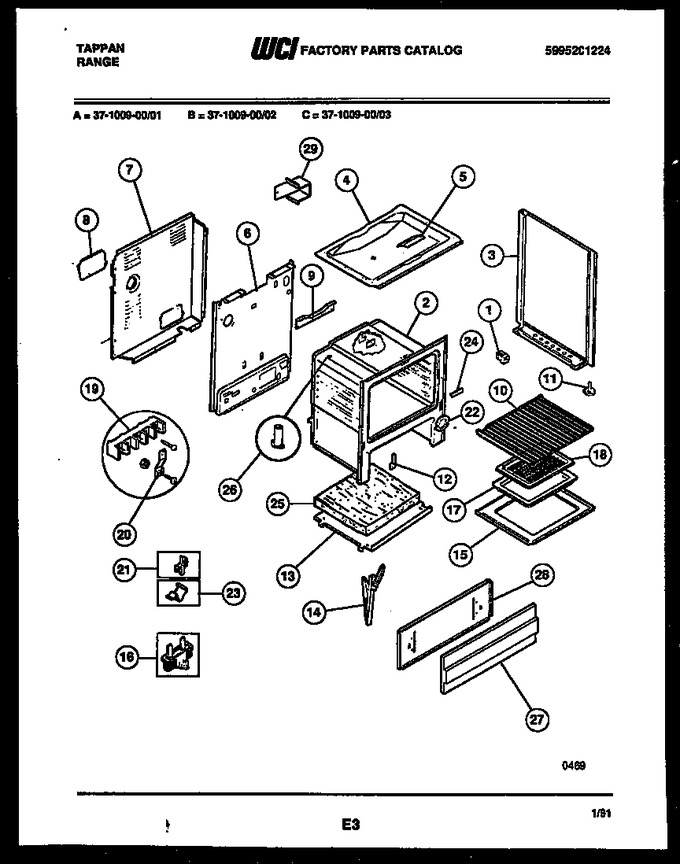

02 - Door Parts
03 - Backguard
04 - Cooktop And Broiler Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 3205620 | Pnl, B/s Lh (white) |
|
- | |||||
| 3 | 3205621 | Pnl, B/s Lh (almd) |
|
- | |||||
| 4 | 08067749 | Burner Box |
|
- | |||||
| 5 | 3131101 | Cover, Plate |
|
- | |||||
| 6 | 3203082 | Back-main |
|
- | |||||
| 7 | 3203549 | Cover - Rear Wall |
|
- | |||||
| 8 | 3203405 | Cover-lower Access |
|
- | |||||
| 9 | 3051368 | Cover-flue |
|
- | |||||
| 10 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 11 | 5303203397 | Screw-level (4) |
|
$ 14.49 | |||||
| 12 | 3131570 | Cover Hng. Cutout (2) |
|
$ 7.35 | |||||
| 13 | 3200825 | Shield-wool Lower |
|
- | |||||
| 14 | 5303131569 | Channel - Door Hng |
|
- | |||||
| 15 | 3203540 | Bottom Oven |
|
- | |||||
| 16 | 5303203651 | Fuse, Thermal Cutout |
|
$ 77.86 | |||||
| 17 | 5303013568 | Broiler Pan |
|
- | |||||
| 18 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 19 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 20 | 08011708 | Ground Strap |
|
- | |||||
| 21 | 5303011805 | Clip-thermal Bulb (2) |
|
- | |||||
| 22 | 3051218 | Plate,oven Light |
|
- | |||||
| 23 | 3051367 | Clip-wire |
|
- | |||||
| 24 | 5303015372 | Cover, Front Main |
|
- | |||||
| 25 | 3051390 | Insulation-bottom |
|
- | |||||
| 26 | 3051344 | Tube-oven Vent |
|
- | |||||
| 27 | 3051202 | Pnl - Drawer (almd) |
|
- | |||||
| 27 | 3051201 | Pnl - Drawer (white) |
|
- | |||||
| 28 | 3131975 | Shield-panel |
|
- | |||||
| 29 | 3203582 | Shield-rear Wall |
|
- | |||||
| *25119 | 3051387 | Cover-rear Wall |
|
- | |||||
| *25120 | 3204525 | Brkt-range Cable Mtg |
|
- | |||||
| 26A | 3017142 | Insulation, Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 26B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 26C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 26D | 3131143 | Screw-hinge Mtg (6) (non-illustrated) |
|
- | |||||
| 26E | 08067783 | Nut, Hex, Brass (6) (non-illustrated) |
|
- | |||||
| 28A | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 3A | 3205623 | Pnl, B/s Rh (white) |
|
- | |||||
| 3A | 3205624 | Pnl-b/s (rh Almd) |
|
- |
