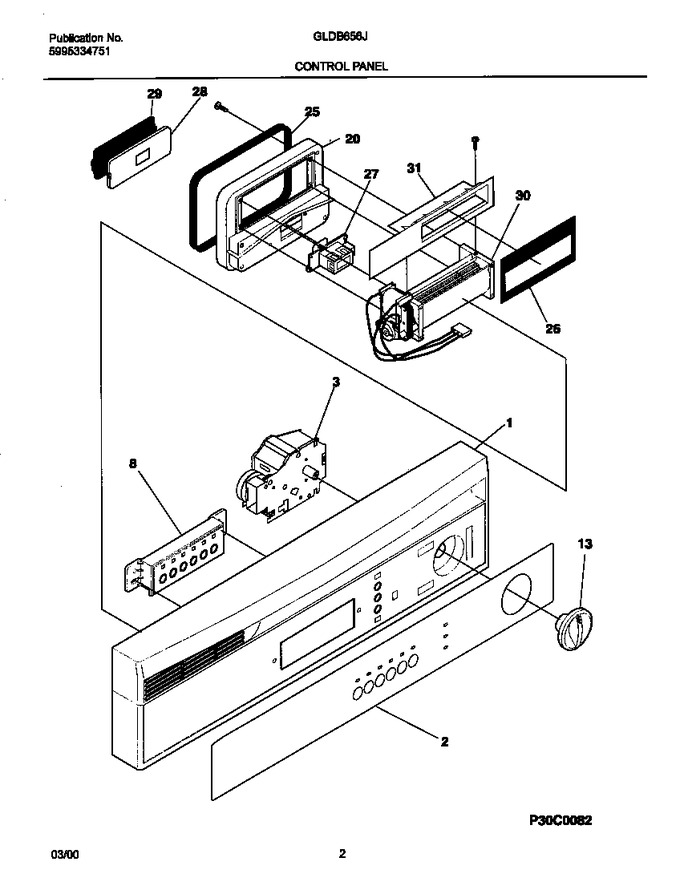

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154368205		Panel-control,almond		Appelez-nous	-
2	154372502		Insert-control Pnl,almond		Appelez-nous	-
3	154367901		Timer		Appelez-nous	-
8	154368601		Switch-selector,6 Button				$ 190.58
13	154239505		Knob-timer,almond		Appelez-nous	-
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
*24000	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
*24001	154131203		Shield-timer		Appelez-nous	-
*24002	154248601		Shield,switch		Appelez-nous	-
*24003	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
*24004	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*24005	154366301		Wiring Harness		Appelez-nous	-
