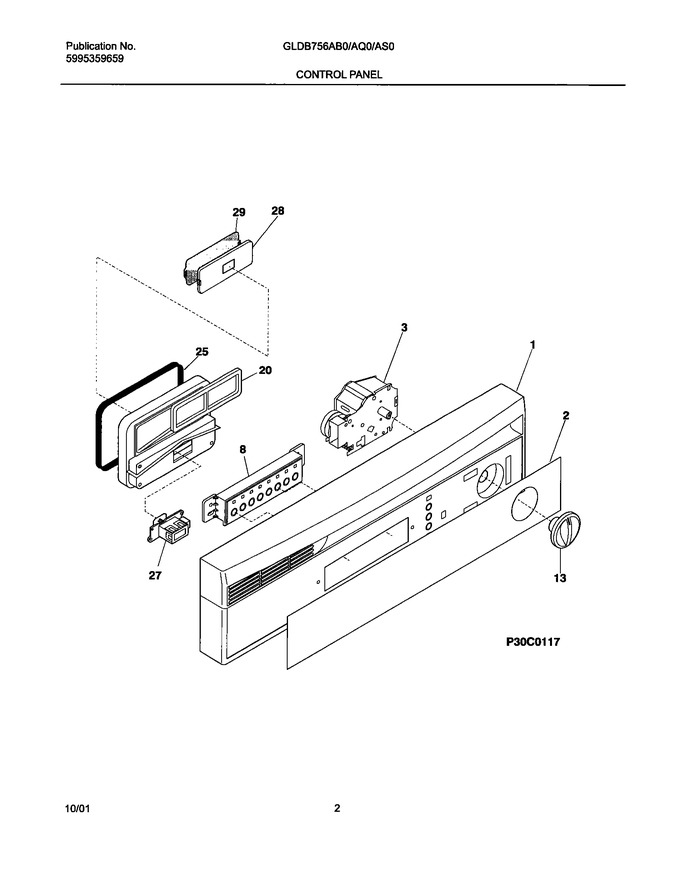

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154388003		Panel-control,black ,1				$ 100.91
2	154401403		Insert,control Panel ,black				$ 95.83
13	154239509		Knob,timer ,black				$ 50.09
20	154345101		Vapor Chamber Assy,w/ Vent Gasket				$ 101.50
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
F3	154367901		Timer		Appelez-nous	-
F8	154389901		Switch-selector,8 Button				$ 57.07
NI	154390001		Shield-switch		Appelez-nous	-
NI	154779601		Screw,mtg.   (Replaces: 5303318719)				$ 1.42
NI	154095701		Screw,thread Rolling ,(2) ,timer				$ 10.34
NI	154402101		Wiring Harness,main		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56
NI	154131203		Shield-timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
