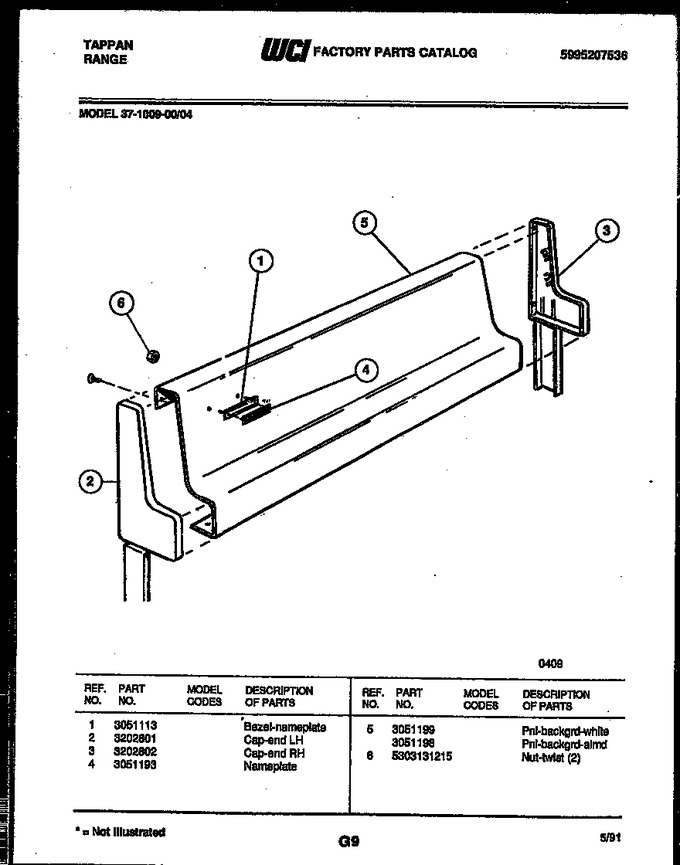

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 2 | 3202801 | Cap-end Lh |
|
- | |||||
| 3 | 3202802 | Cap-end Rh |
|
- | |||||
| 4 | 3051193 | Nameplate |
|
- | |||||
| 5 | 3051198 | Pnl-backgrd-almd |
|
- | |||||
| 5 | 3051199 | Pnl-backgrd-white |
|
- | |||||
| 6 | 5303131215 | Nut-twist (2) |
|
- |
