02 - Door Parts
03 - Backguard

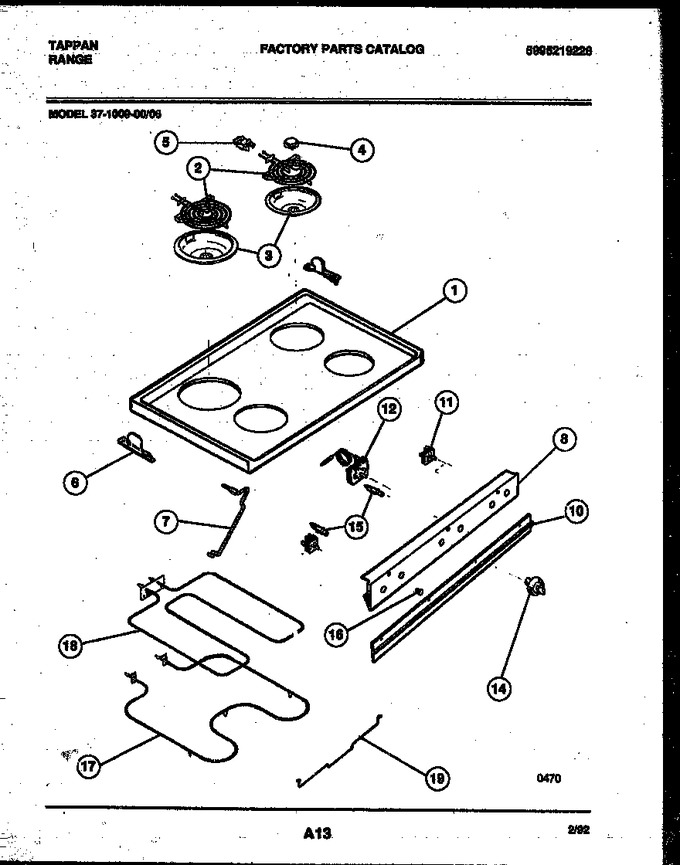

04 - Cooktop And Broiler Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051379 | Main Top, White |
|
- | |||||
| 2 | 316442300 | Element-top Large (1) (Replaces: 5303015715) |
|
Immediately | $ 59.16 | ||||
| 2 | 318372210 | Element-top Small (3) (Replaces: 5303015716) |
|
Immediately | $ 20.21 | ||||
| 3 | 316048413 | Pan-element Lg. (1) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 3 | 5303013589 | Pan-element Sm. (3) |
|
- | |||||
| 4 | 3017801 | Medallion (4) |
|
- | |||||
| 5 | 5303935058 | Block-terminal (4) (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 6 | 08067747 | Bracket-hinge Rh |
|
- | |||||
| 6 | 08067746 | Bracket-hinge Lh |
|
- | |||||
| 7 | 5303271609 | Rod-top Support (2) |
|
- | |||||
| 8 | 5303211419 | Panel-manifold |
|
- | |||||
| 10 | 3204623 | Extrusion-heat Shield |
|
- | |||||
| 11 | 5301313767 | Switch-top Lg (1) |
|
- | |||||
| 11 | 5303051540 | Switch-top Sm. (3) |
|
- | |||||
| 12 | 5303210266 | Thermostat |
|
- | |||||
| 14 | 5303210272 | Knob - Thermostat |
|
- | |||||
| 14 | 5303210271 | Knob-control, (4) |
|
- | |||||
| 15 | 5303210270 | Light-ind 250 V (2) |
|
- | |||||
| 16 | 3016821 | Jewel-indicator (2) |
|
- | |||||
| 17 | 316075103 | Element-oven Bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 18 | 5303051140 | Element-oven Broil |
|
$ 202.71 | |||||
| 19 | 3051373 | Support-element |
|
- |
