SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor


06 - Frame


07 - Rack

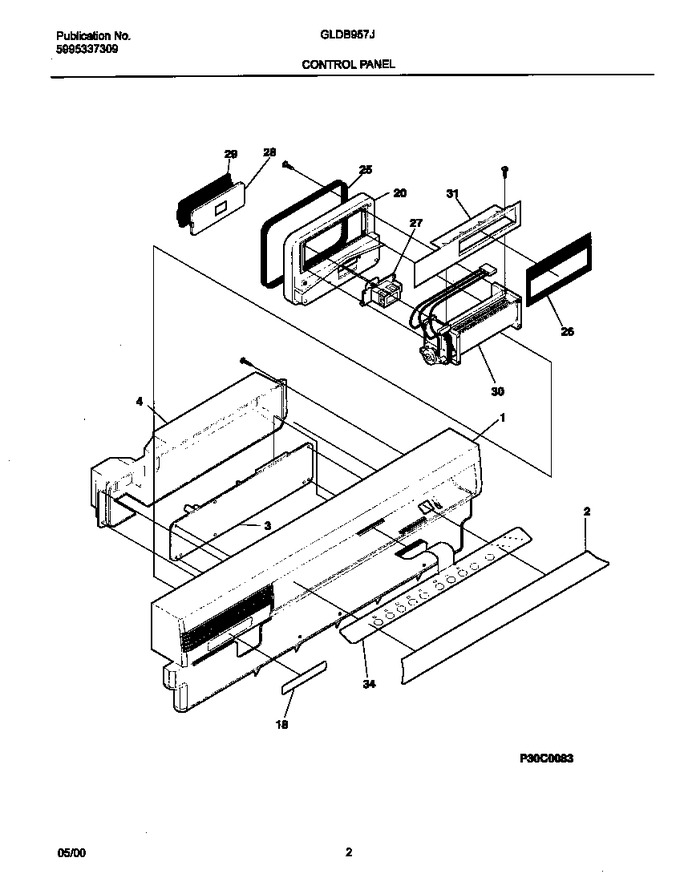

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154370301		Panel-control,white				$ 225.65
2	154370101		Insert-control Pnl,white				$ 96.55
3	154362805		Control		Appelez-nous	-
4	154287901		Cover-control				$ 182.91
18	154302301		Nameplate Assy, White				$ 7.94
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
34	154369801		Keypad,10pad		Appelez-nous	-
*05120	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
*05121	5303322387		Screw,truss Head ,8,1.5`` ,stainless Steel				$ 2.54
*05122	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*05123	154366001		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
