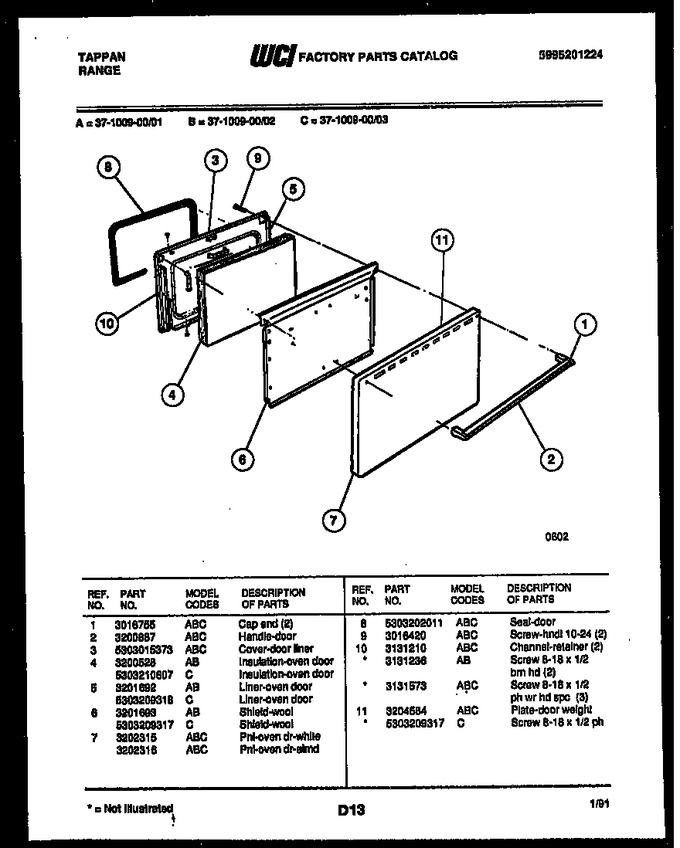

02 - Door Parts
03 - Backguard
04 - Cooktop And Broiler Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016755 | Cap, End (2) |
|
- | |||||
| 2 | 3200887 | Handle, Door |
|
- | |||||
| 3 | 5303015373 | Cover-door Liner |
|
- | |||||
| 4 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 5 | 5303209318 | Liner-oven Door |
|
- | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 3202316 | Pnl-oven Dr (almd) |
|
- | |||||
| 8 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 9 | 3016420 | Screw-hndl 10-24 (2) |
|
- | |||||
| 10 | 3131210 | Channel-retainer (2) |
|
- | |||||
| 11 | 3204584 | Plate-door Weight |
|
- | |||||
| *25111 | 5303209317 | Screw 8-18 X 1/2 Ph |
|
- | |||||
| 10B | 3131573 | Screw 8-18 X 1/2 Ph Wr Hd Spc (3) (non-illustrated) |
|
- |
