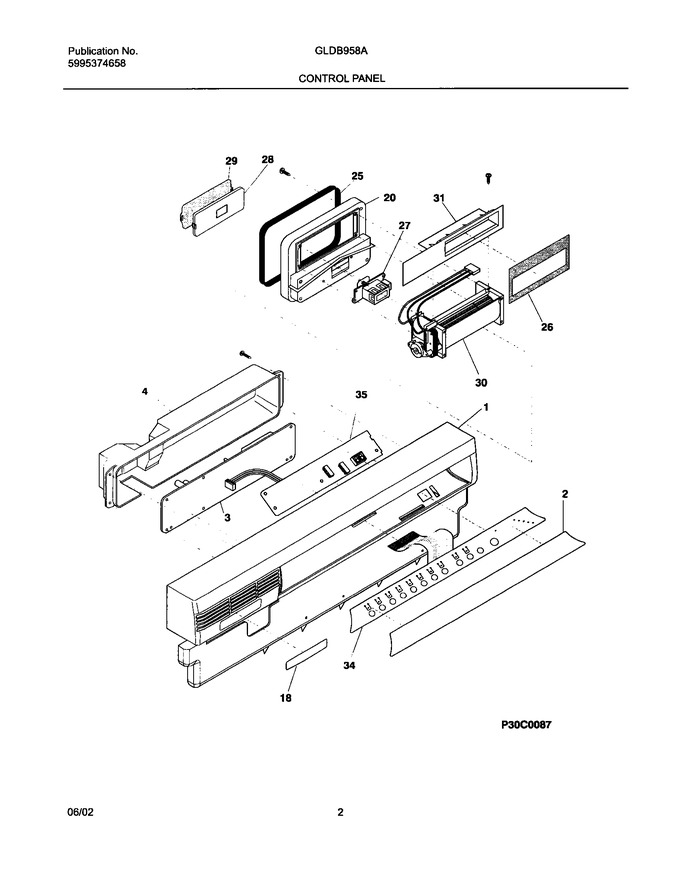

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154370301		Panel-control,white				$ 225.65
2	154403201		Insert,control Panel ,white				$ 75.08
4	154287901		Cover-control				$ 182.91
18	154399801		Nameplate Assy,white				$ 42.21
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
35	154393501		Board,display		Appelez-nous	-
F3	154362809		Control				$ 112.19
F34	154369701		Keypad,12pad				$ 37.43
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154391601		Harness-wiring		Appelez-nous	-
NI	154753101		Thermistor   (Replaces: 154227501)			Immediately	$ 24.80
NI	154399007		Label,energy Guide		Appelez-nous	-
NI	154283901		Screw,no.8-10 ,3/8 Phillips				$ 7.56

    View Diagram in Separate Window       Print Part List
