SELECT A DIAGRAM
01 - Body

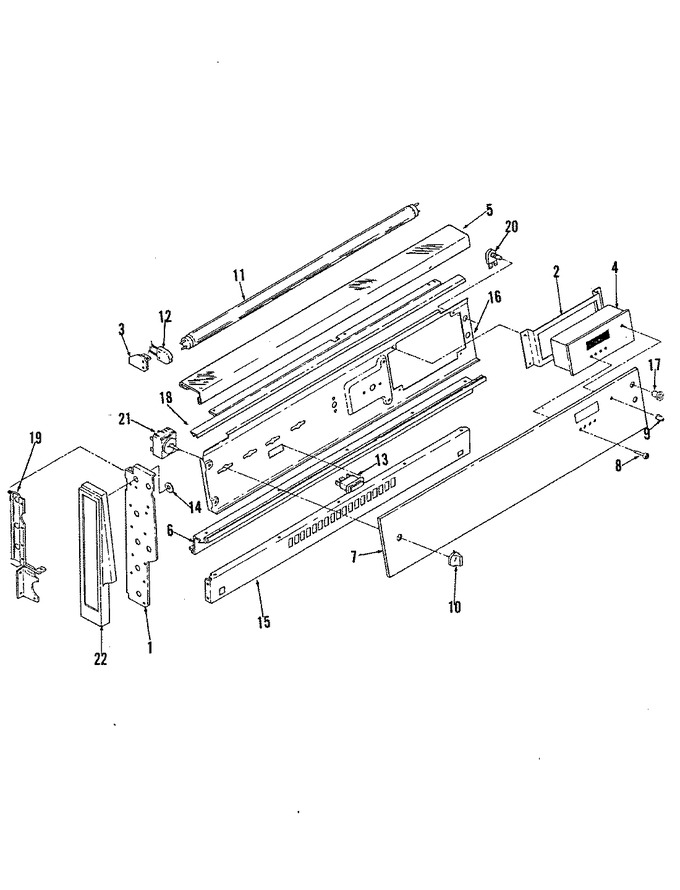

02 - Control Panel
03 - Door
04 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1023200 | Ballast | 01 |
|
- | ||||
| 1 | 0284298 | Bracket | 01 |
|
- | ||||
| 1 | 3801F109-34 | (right) | 01 |
|
- | ||||
| 2 | 3801F108-45 | Bracket, Clock Mntg | 01 |
|
- | ||||
| 3 | 0284291 | Bracket | 01 |
|
- | ||||
| 4 | 7601P047-60 | + Clock | 01 |
|
- | ||||
| 5 | 4005F161-20 | Cover, Bkgd | 01 |
|
- | ||||
| 5 | 7706P166-60 | Extrusion, Glass Spt | 01 |
|
- | ||||
| 5 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 5 | 4005F155-20 | Cover, Bkgd Bottom | 01 |
|
- | ||||
| 6 | 7706P097-60 | Extrusion | 01 |
|
- | ||||
| 7 | 7902P115-60 | Glass, Bkgd | 01 |
|
- | ||||
| 8 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 9 | 1360331 | Knob,thermostat(ele) | 01 |
|
- | ||||
| 9 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 10 | 7711E106 | Knob, Selector | 01 |
|
- | ||||
| 11 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 13 | 1406245 | Light, Indicator | 01 |
|
- | ||||
| 14 | 1555247 | Grip Nut | 01 |
|
- | ||||
| 15 | 2620W014-00 | Panel, Bkgd Lower | 01 |
|
- | ||||
| 15 | 2620W018-90 | + Panel, Bkgd Lower | 13 |
|
- | ||||
| 16 | 3605F091-20 | Plate, Switch Mntg. | 01 |
|
- | ||||
| 16 | 1986341 | Screw | 01 |
|
- | ||||
| 17 | 1762216 | Sleeve | 01 |
|
- | ||||
| 18 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 19 | 1832379 | Switch | 01 |
|
- | ||||
| 19 | 0862418 | Support | 01 |
|
- | ||||
| 19 | 0862417 | Support | 01 |
|
- | ||||
| 20 | 1832397 | Switch | 01 |
|
- | ||||
| 21 | 7728E010 | Trim, Backguard | 01 |
|
- | ||||
| 21 | 1832415 | Switch, Selector | 01 |
|
- | ||||
| 22 | 7715P004-60 | Trim, Bkgd Top-mc | 01 |
|
- | ||||
| 22 | 1916960 | Trim | 01 |
|
- | ||||
| 22 | W10124350 | Not Required Part Or See Note Support, Top (not Required) | 01 |
|
- | ||||
| 22 | 1916961 | Trim | 01 |
|
- | ||||
| 22 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 13 |
|
Immediately | $ 12.62 | |||
| 22 | 7105P002-60 | Support, Main Top | 13 |
|
- |
