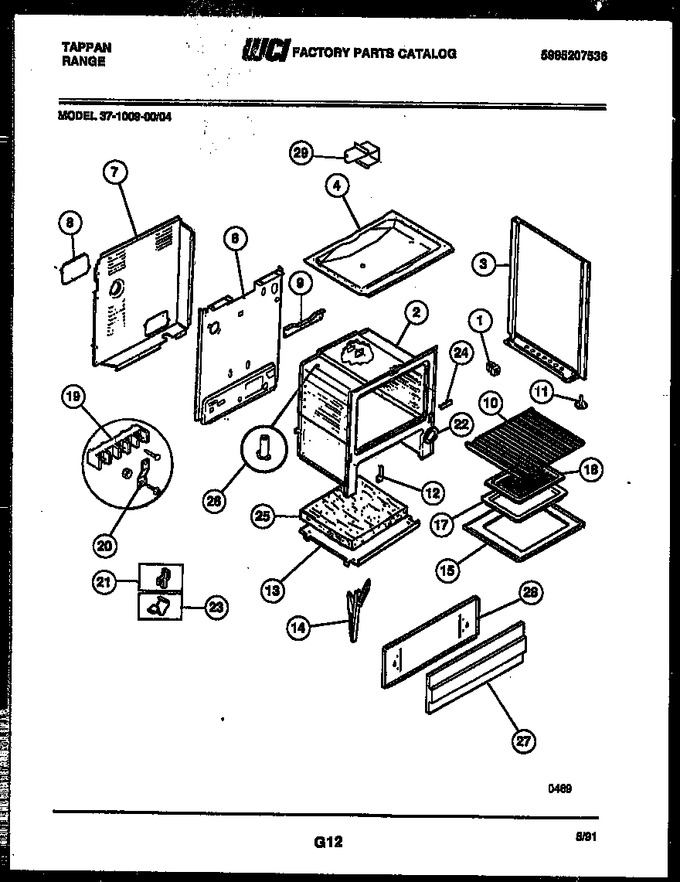

SELECT A DIAGRAM

02 - Door Parts


03 - Backguard


04 - Cooktop And Broiler Parts


05 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
4	5303271756		Burner Box		Appelez-nous	-
6	3203082		Back-main		Appelez-nous	-
7	3203549		Cover - Rear Wall		Appelez-nous	-
8	3203405		Cover-lower Access		Appelez-nous	-
9	3051368		Cover-flue		Appelez-nous	-
10	5303131973		Rack, Oven (2)		Appelez-nous	-
11	3206285		Screw-level (4)		Appelez-nous	-
12	3131570		Cover Hng. Cutout (2)				$ 7.35
13	3200825		Shield-wool Lower		Appelez-nous	-
14	5303131569		Channel - Door Hng		Appelez-nous	-
15	3203540		Bottom Oven		Appelez-nous	-
17	5303013568		Broiler Pan		Appelez-nous	-
18	5303131356		Insert-broiler Pan		Appelez-nous	-
19	5304409888		Terminal Block   (Replaces: 5306563359)			Immediately	$ 26.69
20	5303212739		Plate-ground Strap		Appelez-nous	-
21	5303011805		Clip-thermal Bulb (2)		Appelez-nous	-
22	3051218		Plate,oven Light		Appelez-nous	-
23	3051367		Clip-wire		Appelez-nous	-
24	5303015372		Cover, Front Main		Appelez-nous	-
25	3051390		Insulation-bottom		Appelez-nous	-
26	3051344		Tube-oven Vent		Appelez-nous	-
27	3051202		Pnl - Drawer (almd)		Appelez-nous	-
28	3131975		Shield-panel		Appelez-nous	-
29	3203582		Shield-rear Wall		Appelez-nous	-
*51978	3203550		Plug-button			Immediately	$ 15.22
*51978	19100210058		Wiring Diagram (not For Purchase)		Appelez-nous	-
*51978	3051387		Cover-rear Wall		Appelez-nous	-
*51978	5303206618		Brkt-range Cable Mtg		Appelez-nous	-
26A	3017142		Insulation, Wrap (non-illustrated)				$ 193.50
26B	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
26C	5303212740		Screw-hinge Mtg (non-illustrated)		Appelez-nous	-
26D	5303051099		Nut-hex (non-illustrated)		Appelez-nous	-
28A	3934056		Anti-tip Kit (non-illustrated)		Appelez-nous	-
3A	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
