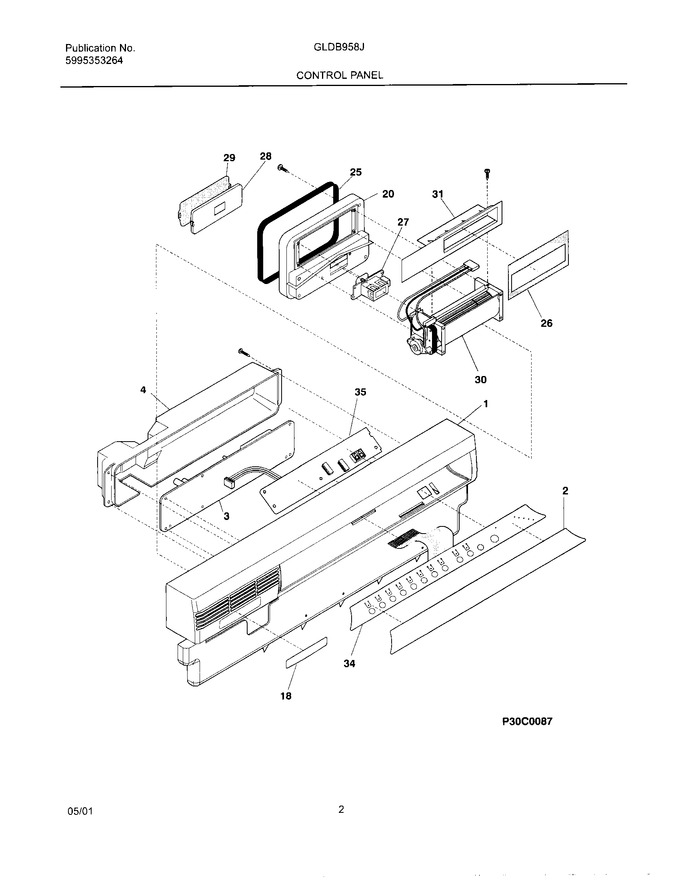

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154370302		Panel-control,almond				$ 189.16
2	154370002		Insert-control Pnl,almond		Appelez-nous	-
3	154362809		Control				$ 112.19
4	154287901		Cover-control				$ 182.91
18	154302302		Nameplate Assy, Almond		Appelez-nous	-
20	154228301		Duct,dynamic				$ 35.02
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
30	154226802		Blower,crossflow				$ 37.28
31	154228101		Chamber,vapor				$ 62.84
34	154369701		Keypad,12pad				$ 37.43
35	154362901		Board-display		Appelez-nous	-
NI	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
NI	154391601		Harness-wiring		Appelez-nous	-
NI	154753101		Thermister   (Replaces: 154227501)			Immediately	$ 24.80
NI	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56

    View Diagram in Separate Window       Print Part List
