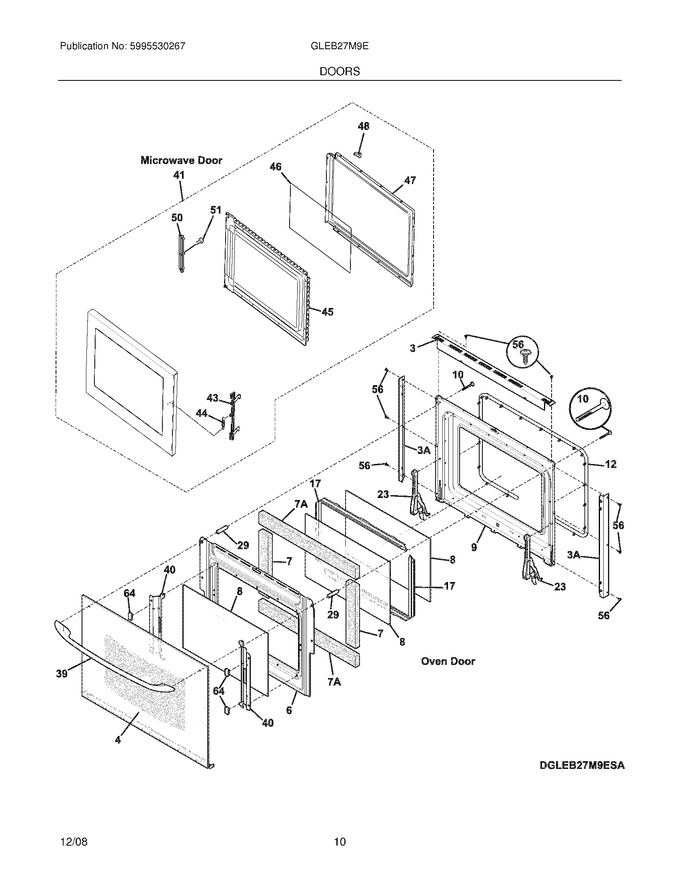

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260211		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318261350		Glass Assy.,oven Door ,black ,outer ,w/ Trim		Appelez-nous	-
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259611		Liner,oven Door ,upper		Appelez-nous	-
10	5304500008		Screw,10-24 X 1.750 ,handle Mtg   (Replaces: 5304416408)				$ 12.13
12	318053125		Seal,door		Appelez-nous	-
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318024722		Hinge,door ,upper ,(2)		Appelez-nous	-
29	318014402		Spacer,door		Appelez-nous	-
39	318264500		Handle,oven Door ,black		Appelez-nous	-
40	318382302		Bracket,glass Holder ,lower Door ,(2)   (Replaces: 318242700)				$ 50.81
41	5304452257		Door Assembly,complete ,black		Appelez-nous	-
43	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
44	5304440316		Spring,door Latch			Immediately	$ 61.00
45	5304440859		Panel,inner Door ,bisque		Appelez-nous	-
46	5304440860		Seal,door ,film				$ 63.09
47	5304440861		Choke Cover,inner Door				$ 73.02
48	5304442145		Door Stop		Appelez-nous	-
50	5304440862		Door Stop		Appelez-nous	-
51	5304452259		Screw		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318285061		Insulation,(2)		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
