01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

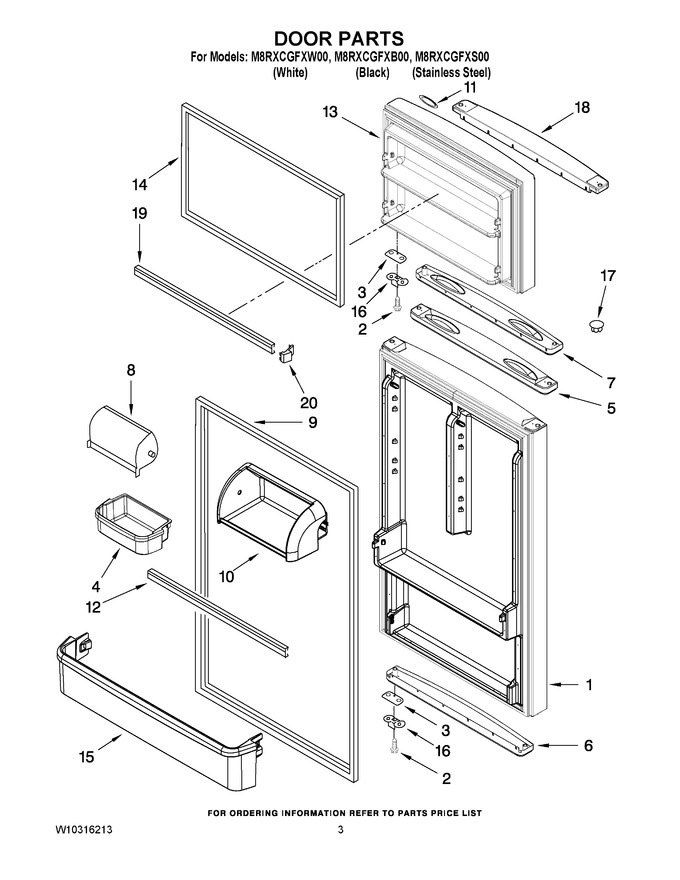

| 1 | W10267743 | Refrigerator Door Panel (includes Illus. 5,6 & 9) (white) |
|
- | |||||
| 1 | W10267783 | Refrigerator Door Panel (includes Illus. 5,6 & 9) (black) |
|
- | |||||
| 1 | W10267785 | Refrigerator Door Panel (includes Illus. 5,6 & 9) (stainless Steel) |
|
- | |||||
| 2 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 4 | W11396038 | Bin, Door (3) (Replaces: 2266150) |
|
$ 138.81 | |||||
| 5 | 2222045 | Handle,(rc & Fc) (black) |
|
$ 41.70 | |||||
| 5 | 2265645W | Handle-rc & Fc (white) |
|
$ 188.55 | |||||
| 6 | W10267713 | Endcap, Bottom (white) |
|
$ 34.53 | |||||
| 6 | W10267749 | Endcap, Bottom (black) |
|
$ 36.32 | |||||
| 7 | W10267712 | Endcap, Bottom (white) |
|
$ 30.78 | |||||
| 7 | W10267747 | Endcap, Bottom (black) |
|
- | |||||
| 8 | 2264478 | Door, Compartment |
|
$ 32.58 | |||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 277.59 | |||||
| 9 | WP2319264W | Door Gasket, Magnetic (white) (Replaces: 2264727) |
|
Immediately | $ 282.07 | ||||
| 10 | 2264477 | Housing, Compartment (Replaces: 2266057) |
|
$ 83.18 | |||||
| 11 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 60.43 | ||||
| 12 | WPW10234241 | Trim, Door (Replaces: W10234241) |
|
Immediately | $ 104.87 | ||||
| 13 | W10278900 | Freezer Door Panel (includes Illus. 7, 14 & 18) (white) |
|
- | |||||
| 13 | W10267786 | Freezer Door Panel (includes Illus. 7, 14 & 18) (stainless Steel) |
|
- | |||||
| 13 | W10267784 | Freezer Door Panel (includes Illus. 7, 14 & 18) (black) |
|
- | |||||
| 14 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 14 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 15 | 2266146 | Trim, Door Shelf |
|
- | |||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 17 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 18 | 2265644W | Endcap, Top (white) |
|
$ 148.05 | |||||
| 18 | 2252863 | Endcap, Top (black) |
|
Immediately | $ 133.31 | ||||
| 19 | WP2266727 | Trim, Door Shelf (freezer) (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 20 | WP2156003 | End Cap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 |
