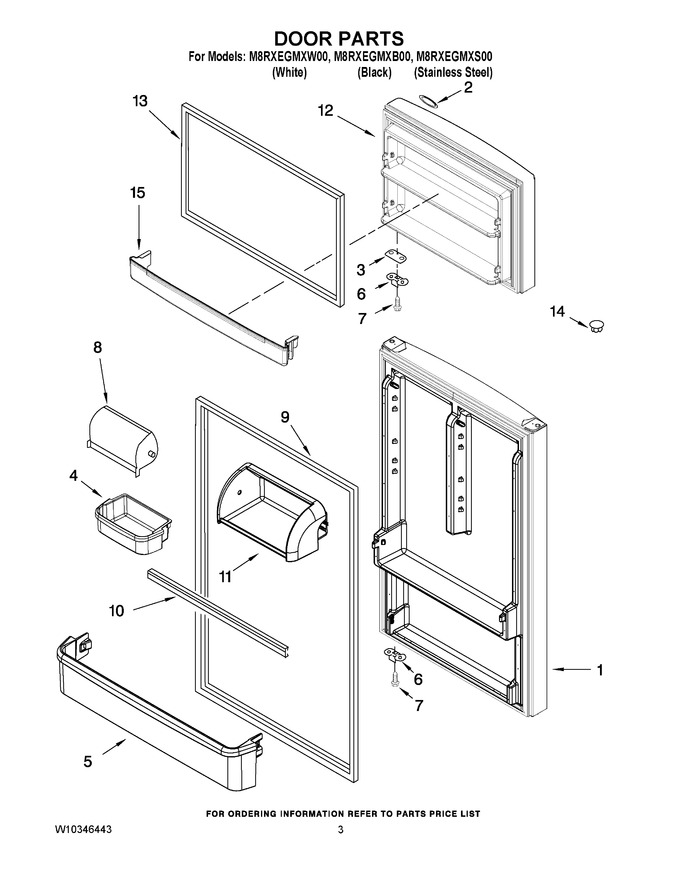

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264716B | Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (black) |
|
- | |||||
| 1 | W10209800 | Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (stainless Steel) |
|
- | |||||
| 1 | 2316153W | Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (white) |
|
- | |||||
| 2 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 60.43 | ||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 4 | W11396038 | Bin, Door (3) (Replaces: 2266150) |
|
$ 138.81 | |||||
| 5 | 2266146 | Trim, Door Shelf |
|
- | |||||
| 6 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 7 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 8 | 2264478 | Door, Compartment |
|
$ 32.58 | |||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 277.59 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (white) (Replaces: W10190032) |
|
Immediately | $ 173.44 | ||||
| 10 | WPW10234241 | Trim, Door (Replaces: W10234241) |
|
Immediately | $ 104.87 | ||||
| 11 | 2264477 | Housing, Compartment (Replaces: 2266057) |
|
$ 83.18 | |||||
| 12 | W10209793 | Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (stainless Steel) |
|
- | |||||
| 12 | 2264717B | Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (black) |
|
- | |||||
| 12 | 2316154W | Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (white) |
|
$ 50.35 | |||||
| 13 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 13 | WP2319263T | Door Gasket, Magnetic (white) (Replaces: W10190031) |
|
Immediately | $ 152.58 | ||||
| 14 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.02 | ||||
| 14 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 | |||||
| 15 | 2266148 | Trim, Door Shelf (freezer) |
|
Immediately | $ 236.12 |
