SELECT A DIAGRAM

01 - Oven

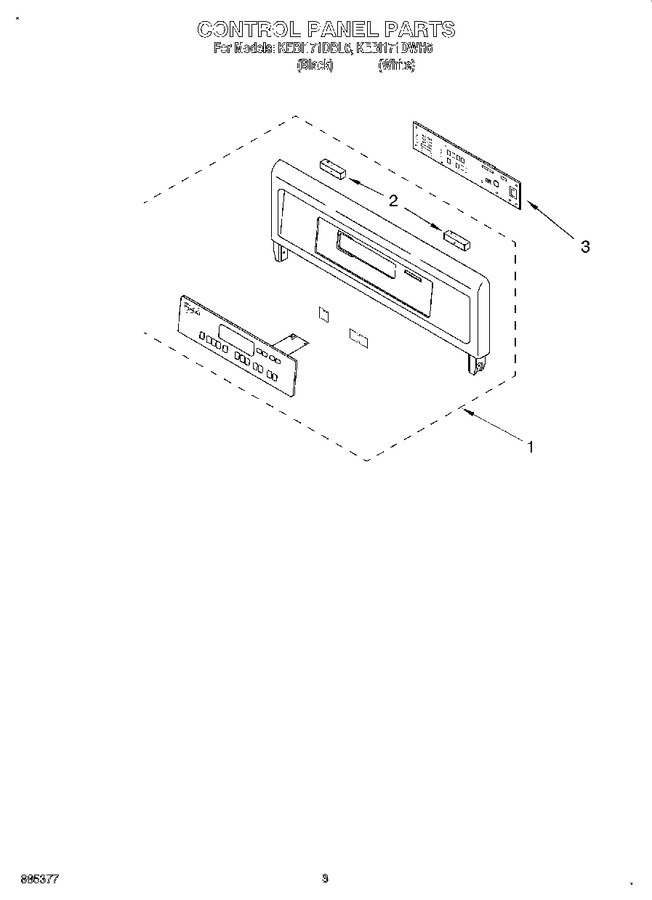

02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451254		Control Panel Assy. W/membrane Switch (black Model)		Appelez-nous	-
1	4451255		Control Panel Assy. W/membrane Switch (white Model)		Appelez-nous	-
1	4159465		Control Panel Assy. W/membrane Switch (screw)		Appelez-nous	-
2	4159465		Screw		Appelez-nous	-
2	4451033		Gasket, Control Panel		Appelez-nous	-
3	WP4449745		Screw   (Replaces: 4449745)				$ 6.74
3	4448865		Microcomputer		Appelez-nous	-
	LIT4452023		Tech Sheet		Appelez-nous	-
	LIT4450410		Installation Instructions		Appelez-nous	-
	LIT4450570		Use & Care Guide		Appelez-nous	-
	LIT3191638		Safer Cooking Tips		Appelez-nous	-
	LIT4450839		Installation/ Undercounter		Appelez-nous	-
	LIT4449264		Easy Set Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
