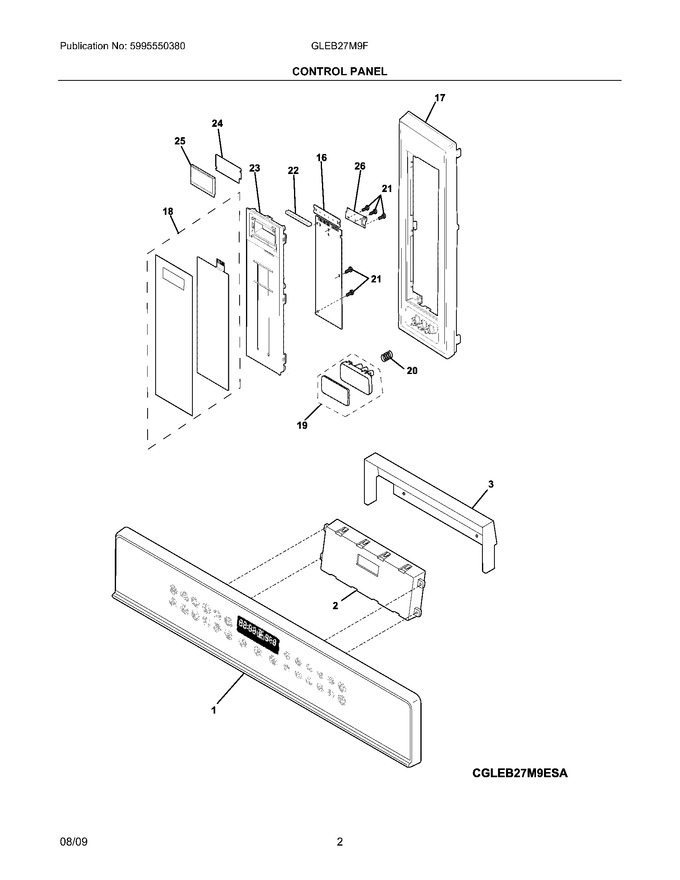

SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318331301		Control Panel Assembly,glass ,white ,w/touch Pad		Appelez-nous	-
3	318295705		Deflector,timer		Appelez-nous	-
17	5304442127		Frame,control Panel ,white		Appelez-nous	-
19	5304442133		Push Button,door ,white		Appelez-nous	-
20	5304442134		Spring,button		Appelez-nous	-
21	5304440282		Screw,control Board ,3mm X 10mm		Appelez-nous	-
22	5304440832		Connector,rubber ,control Board				$ 41.63
23	5304440833		Panel,touch Control				$ 83.93
26	5304440836		Bracket,pcb Support				$ 44.47
F16	5304440820		Control Board,printed Circuit				$ 437.30
F18	5304452254		Touch Control Assy,white		Appelez-nous	-
F2	316418723		Clock/timer,electronic ,es510w1				$ 316.92
F24	5304493204		Led Sheet,backlight   (Replaces: 5304440834)				$ 26.94
F25	5304440835		Lcd,display				$ 73.38
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
