SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body


07 - Door

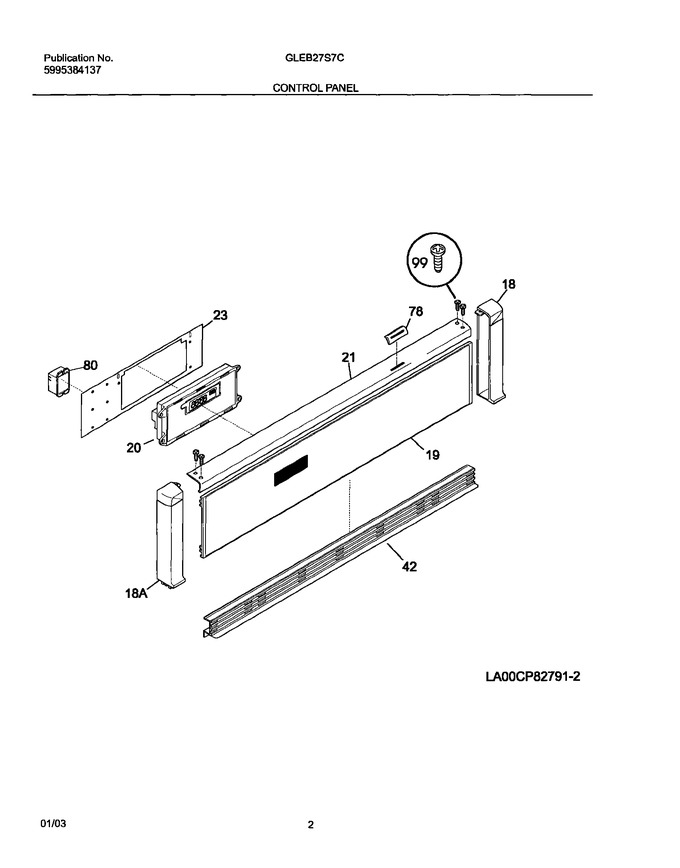

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	318030037		Panel,control ,black		Appelez-nous	-
21	5303301310		Trim,canopy ,black ,top		Appelez-nous	-
23	318111602		Bracket,clock & Relay		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
78	5303302396		Cover, Oven Vent, Black		Appelez-nous	-
99	5303307406		Screw,6-32 X 3/8 ,black ,(2)				$ 11.29
18A	5303311232		End Cap, Black, Lh		Appelez-nous	-
F20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
F80	318111501		Relay,convection ,oven Light ,(2)				$ 85.10
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
