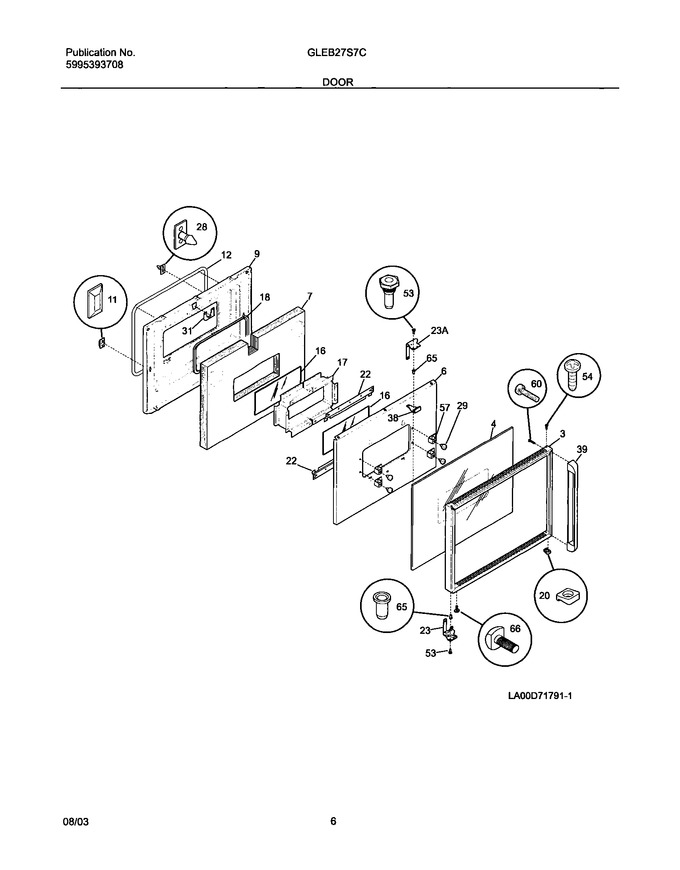

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026128		Trim-oven Door,white				$ 371.55
4	318051618		Glass,oven Door ,white ,outer				$ 347.72
6	318073502		Shield,air Wash				$ 23.68
7	318133751		Insulation,oven Door		Appelez-nous	-
9	318048504		Liner-oven Door				$ 374.59
11	5303320493		Cover-hinge Cutout				$ 6.93
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318113800		Spacer-door				$ 9.27
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318074203		Hinge-oven Door,lower		Appelez-nous	-
28	318090210		Strike-door				$ 87.99
29	318165800		Bumper,base   (Replaces: 318147400)				$ 17.72
31	318065102		Latch-door				$ 58.81
38	318074801		Stop,door ,white				$ 39.95
39	318039901		Handle,oven Door ,white				$ 245.96
53	318074913		Pin,hinge ,white   (Replaces: 318074910)			Immediately	$ 46.07
54	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
57	318172902		Stiffener Glass				$ 1.47
60	5303321221		Screw-handle, Black		Appelez-nous	-
65	318090120		Bushing,hinge ,white		Appelez-nous	-
66	318167100		Screw,door Lock		Appelez-nous	-
23A	318074202		Hinge-oven Door,upper		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303325630		Lockwasher				$ 3.31
NI	5303321214		Washer, Lock		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303325170		Nut-keps, 8-32		Appelez-nous	-
