SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body

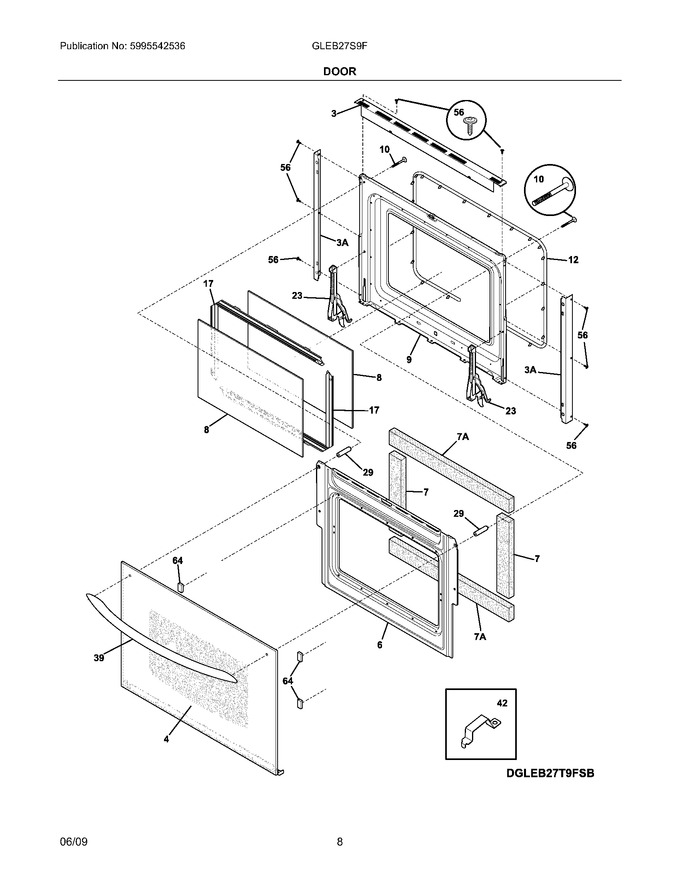

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260211		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318261350		Glass Assy.,oven Door ,black ,outer ,w/ Trim		Appelez-nous	-
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259652		Liner,oven Door ,upper		Appelez-nous	-
10	5304459529		Screw,handle Mtg. ,no.10-24 X 1 7/8 ,(2)				$ 10.12
12	318053126		Gasket,oven Door Seal				$ 75.55
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318567101		Hinge,oven Door ,(2)				$ 76.18
29	318014405		Spacer,door		Appelez-nous	-
39	318372402		Handle,door ,black ,w/spacer		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372001		Insulation,door ,20.5 X 2.375 ,(2)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
