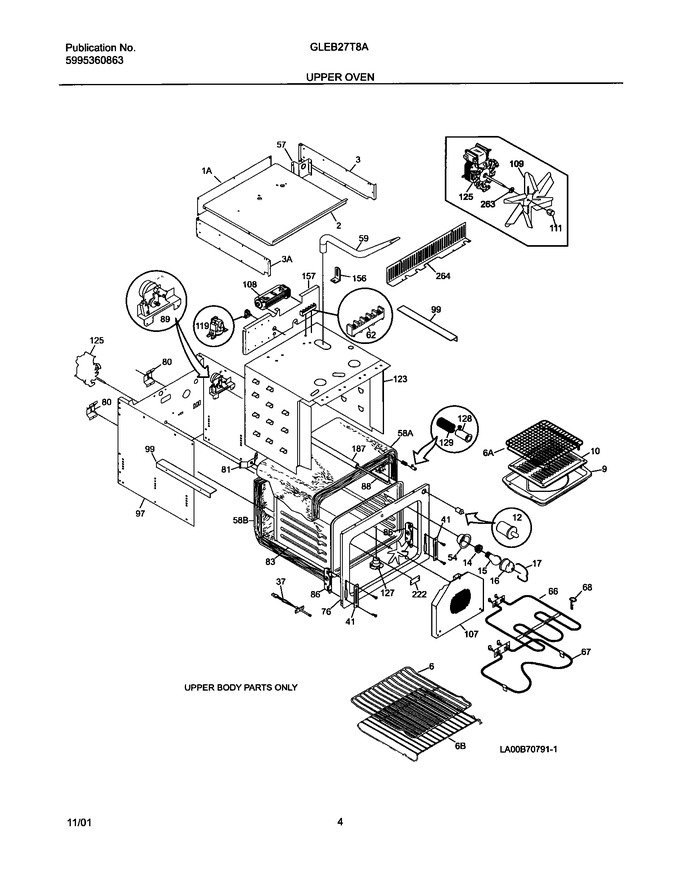

03 - Control Panel
05 - Upper Oven
07 - Lower Oven
09 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318070202 | Cover,top |
|
- | |||||
| 3 | 318070601 | Panel,bodyside ,upper,rh |
|
- | |||||
| 6 | 5303299719 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch,oven Light ,door Frame (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 16 | 5304524341 | Cover,oven Light ,glass (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 57 | 318072100 | Plate,connection |
|
- | |||||
| 59 | 318072510 | Tube-oven Vent |
|
$ 157.80 | |||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 76 | 318056104 | Front-oven |
|
- | |||||
| 80 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 83 | 318089519 | Liner-oven Assy |
|
$ 228.80 | |||||
| 86 | 5303310524 | Receptacle,hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 97 | 318066500 | Wrapper, Back & Sides |
|
- | |||||
| 99 | 318055200 | Support |
|
- | |||||
| 107 | 5303318711 | Cover,fan |
|
- | |||||
| 109 | 5303311203 | Blade,fan |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 123 | 318071441 | Shield-insulation,top & Sides |
|
- | |||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 156 | 318024100 | Bracket-vent Tube |
|
- | |||||
| 157 | 318071601 | Divider,upper Oven |
|
- | |||||
| 187 | 318013501 | Tube,latch Rod |
|
- | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303322885 | Spacer,fan Blade |
|
- | |||||
| 264 | 318143811 | Shield,wire |
|
- | |||||
| 1A | 318071000 | Back,main ,upper |
|
- | |||||
| 3A | 318070600 | Panel,bodyside ,upper,lh |
|
- | |||||
| 58A | 5303316994 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 5303311219 | Insulation,oven Back |
|
- | |||||
| 6A | 5303311206 | Shelf,broiler Pan |
|
- | |||||
| 6B | 318025202 | Shelf,oven |
|
- | |||||
| F108 | 318073012 | Motor,blower |
|
- | |||||
| F119 | 318005200 | Switch-thermal, Lower |
|
- | |||||
| F125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| F14 | 316116400 | Receptacle, Oven Light (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| F15 | 3201908 | Light,oven |
|
- | |||||
| F37 | 316217002 | Sensor,oven Temp Probe (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| F62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| F67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| F89 | 318095956 | Motor,latch Assy ,w/brkt & Switch (Replaces: 318095934) |
|
Immediately | $ 143.83 | ||||
| NI | 318120710 | Switch,cooktop Shutoff |
|
- | |||||
| NI | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303317199 | Support, Snap-in, (3) |
|
$ 36.75 | |||||
| NI | 5304407813 | Washer |
|
- | |||||
| NI | 318078501 | Box & Wires Assy |
|
- |
