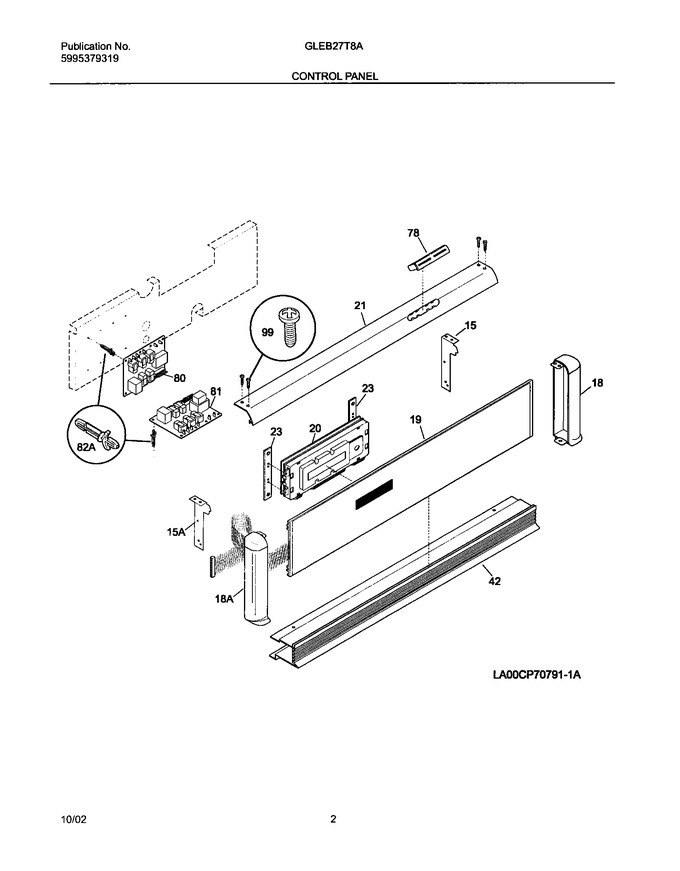

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
19	318030029		Panel,control ,black		Appelez-nous	-
21	5303300968		Trim,canopy ,black ,top		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
78	318036900		Cover, Oven Vent, Black		Appelez-nous	-
99	5303307406		Screw,6-32 X 3/8 ,black ,(2)				$ 11.29
15A	5303302287		Support-backguard, Lh		Appelez-nous	-
18A	5303311232		End Cap, Black, Lh		Appelez-nous	-
82A	5303317199		Support, Snap-in, (3)				$ 36.75
F20	318010501		Clock/timer, Eoc				$ 666.75
F80	318022001		Relay Board			Immediately	$ 489.91
F81	318022002		Relay Board,w/transformer				$ 482.74
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323136		Screw-ground		Appelez-nous	-
