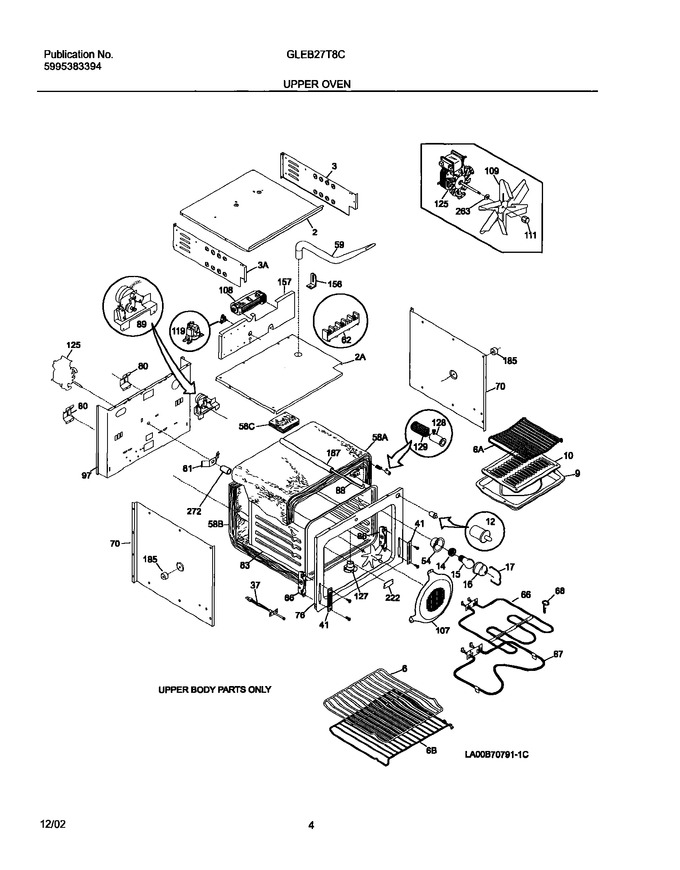

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318070202		Cover,top		Appelez-nous	-
3	318070610		Panel,bodyside ,upper,rh		Appelez-nous	-
6	5303299719		Rack-oven		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
59	318072510		Tube-oven Vent				$ 157.80
66	5303322963		Element-broil		Appelez-nous	-
68	5304403015		Support,element Hanger				$ 35.04
70	5303300142		Shield-insulation		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
83	318089524		Liner,oven				$ 220.08
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
97	318066703		Wrapper,back And Sides		Appelez-nous	-
107	318219405		Cover,fan   (Replaces: 318219401)				$ 82.69
109	5303311203		Blade,fan				$ 42.84
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317100		Adapter,vent Tube ,with Converter   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
156	318024100		Bracket-vent Tube		Appelez-nous	-
157	318071602		Divider,upper Oven		Appelez-nous	-
185	318531800		Spacer-oven Shield   (Replaces: 318014700)				$ 12.76
187	318013501		Tube,latch Rod		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
263	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 11.34
272	5303311207		Tube, Protector		Appelez-nous	-
2A	318071502		Shield,oven Top		Appelez-nous	-
3A	318070611		Panel,bodyside ,upper,lh		Appelez-nous	-
58A	318133758		Insulation,oven Wrapper		Appelez-nous	-
58B	318133749		Insulation,oven Back		Appelez-nous	-
58C	5303316994		Insulation		Appelez-nous	-
6A	318219500		Rack,broiler Pan		Appelez-nous	-
6B	318025202		Shelf,oven		Appelez-nous	-
F108	318073012		Motor,blower		Appelez-nous	-
F119	318004900		Switch,thermal				$ 60.25
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F125	5303311202		Motor-convection				$ 114.07
F37	316217002		Sensor,oven Temp Probe   (Replaces: 316111203)			Immediately	$ 61.23
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
F89	318095956		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095934)			Immediately	$ 143.83
NI	318078507		Box & Wires Assy		Appelez-nous	-
NI	3015722		Clip-wire		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318120711		Switch				$ 87.68
